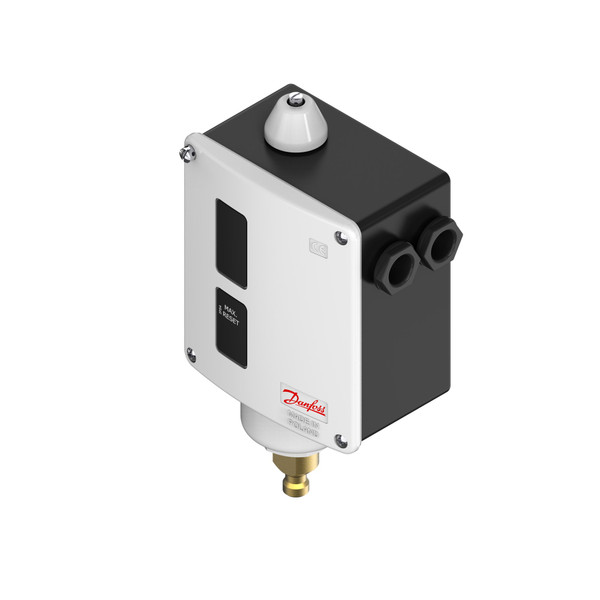

Description
Reset function: Manual Max, Contact function: SPDT
Product details
| Gross weight | 0.93 kg |
| Net weight | 0.93 kg |
| EAN | 5702428043021 |
| Gross weight | 0.93 kg |
| Net weight | 0.93 kg |
| EAN | 5702428043021 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE EAC LVD PED PZH RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 136 bar |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Differential [bar] | 1.5 bar |
| Differential [psi] | 14.5 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP54 |
| Max. test pressure [bar] Pe | 38 bar |
| Max. test pressure [psig] | 551 psig |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 495 psig |
| Packing format | Multi pack |
| Pressure connection notes | Cutting ring 6mm tube |
| Pressure connection size | 12 x 1.5 |
| Pressure connection standard | ISO 8434-1 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 15 pc |
| Regulation range [bar] Pe [Max] | 28 bar |
| Regulation range [bar] Pe [Min] | 10 bar |
| Regulation range [psig] Pe [Max] | 406.1 psig |
| Regulation range [psig] Pe [Min] | 145 psig |
| Reset function | Manual Max |
| Serviceable | Contact systems |
| Type | RT6AB |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE EAC LVD PED PZH RMRS RoHS RoHS China TYSK |
| Burst pressure [bar] | 136 bar |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V DC13=12 W, 220 V AC3=4 A, 400 V LR=28 A, 400 V |
| Differential [bar] | 1.5 bar |
| Differential [psi] | 14.5 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP54 |
| Max. test pressure [bar] Pe | 38 bar |
| Max. test pressure [psig] | 551 psig |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 495 psig |
| Packing format | Multi pack |
| Pressure connection notes | Cutting ring 6mm tube |
| Pressure connection size | 12 x 1.5 |
| Pressure connection standard | ISO 8434-1 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | RT Pressure switch |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 15 pc |
| Regulation range [bar] Pe [Max] | 28 bar |
| Regulation range [bar] Pe [Min] | 10 bar |
| Regulation range [psig] Pe [Max] | 406.1 psig |
| Regulation range [psig] Pe [Min] | 145 psig |
| Reset function | Manual Max |
| Serviceable | Contact systems |
| Type | RT6AB |
