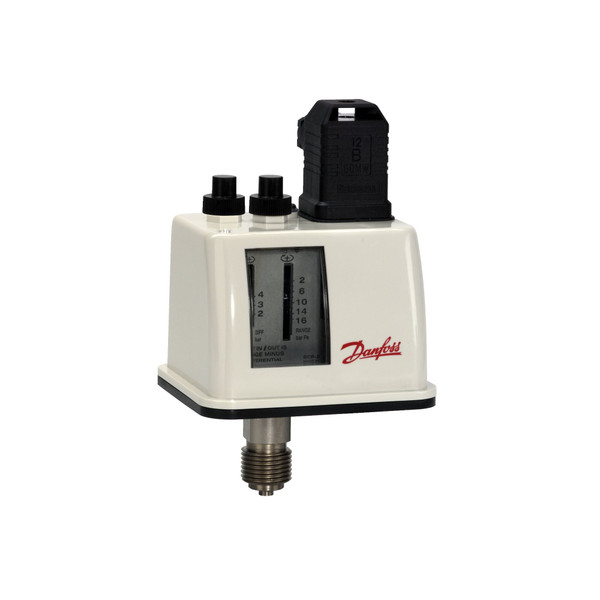

017B0018 Danfoss Pressure switch, BCP5

Write a Review
SKU:
017B0018
Availability:
2 - 3 weeks
250.88€

Product details Gross weight 0.63 kg Net weight 0.48 kg EAN 5702423248070 Gross weight 0.63 kg Net weight 0.48 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.63 kg
Net weight 0.48 kg
EAN 5702423248070
Gross weight 0.63 kg
Net weight 0.48 kg
EAN 5702423248070



Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -20 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -4 °F
Approval CE
EAC
EMCD
LVD
PED
RoHS
TYSK
TÃœV
Approval file name TÃœV .SDWFS/SDBFS .15-335
Burst pressure [bar] 48 bar
Contact function SPDT gold
Contact load type A
Contact rating AC15=1 A, 250 V
AC1=6 A, 250 V
DC13=10 W, 250 V
Differential [bar] [Max] 3.2 bar
Differential [bar] [Min] 2 bar
Differential [psi] [Max] 46.4 psi
Differential [psi] [Min] 29 psi
Electrical conn. Male/Female Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803
Electrical spec. standard EN 60947-4/-5
Enclosure rating IP IP65
Max. test pressure [bar] Pe 35.2 bar
Max. test pressure [psig] 511 psig
Max. Working Pressure [bar] 32 bar
Max. Working Pressure [psig] 465 psig
Packing format Multi pack
Pressure connection size 1/2
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product group Switches and thermostats
Product name Pressure switch
Quantity per packing format 9 pc
Regulation range [bar] Pe [Max] 16 bar
Regulation range [bar] Pe [Min] 2 bar
Regulation range [psig] Pe [Max] 231.06 psig
Regulation range [psig] Pe [Min] 29 psig
Reset function Auto
Serviceable No
Type BCP5
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -20 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -4 °F
Approval CE
EAC
EMCD
LVD
PED
RoHS
TYSK
TÃœV
Approval file name TÃœV .SDWFS/SDBFS .15-335
Burst pressure [bar] 48 bar
Contact function SPDT gold
Contact load type A
Contact rating AC15=1 A, 250 V
AC1=6 A, 250 V
DC13=10 W, 250 V
Differential [bar] [Max] 3.2 bar
Differential [bar] [Min] 2 bar
Differential [psi] [Max] 46.4 psi
Differential [psi] [Min] 29 psi
Electrical conn. Male/Female Female
Electrical connection DIN-plug
Electrical connection size Pg 11
Electrical connection standard EN 175301-803
Electrical spec. standard EN 60947-4/-5
Enclosure rating IP IP65
Max. test pressure [bar] Pe 35.2 bar
Max. test pressure [psig] 511 psig
Max. Working Pressure [bar] 32 bar
Max. Working Pressure [psig] 465 psig
Packing format Multi pack
Pressure connection size 1/2
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product group Switches and thermostats
Product name Pressure switch
Quantity per packing format 9 pc
Regulation range [bar] Pe [Max] 16 bar
Regulation range [bar] Pe [Min] 2 bar
Regulation range [psig] Pe [Max] 231.06 psig
Regulation range [psig] Pe [Min] 29 psig
Reset function Auto
Serviceable No
Type BCP5
Reset function: Auto, Contact function: SPDT gold, Pressure connection size: 1/2, Pressure connection type: G
