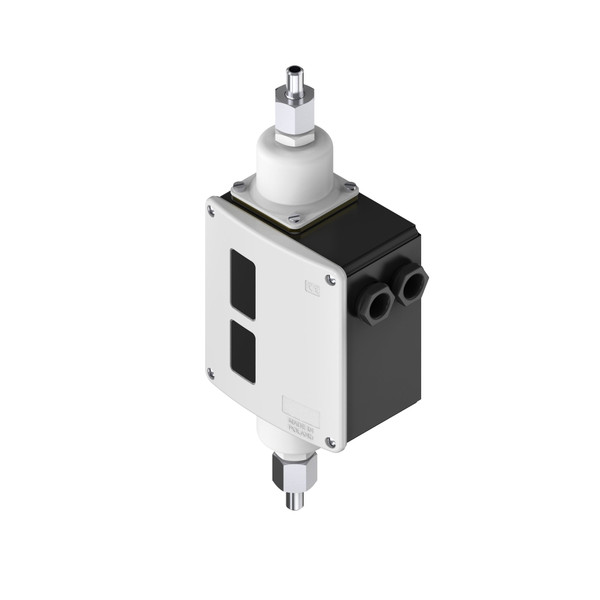

017D003066 Danfoss Differential pressure switch, RT262AE

Write a Review
SKU:
017D003066
Availability:
2 - 3 weeks
$824.48

Product details Gross weight 1.51 kg Net weight 1.23 kg EAN 5702428131476 Gross weight 1.51 kg Net weight 1.23 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 1.51 kg
Net weight 1.23 kg
EAN 5702428131476
Gross weight 1.51 kg
Net weight 1.23 kg
EAN 5702428131476



Alarm Signal Falling
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Ammonia application Yes
Approval ATEX - Cat. 2 - Zone 1
CCC
CE
EAC
PZH
RMRS
RoHS
RoHS China
TYSK
ATEX Sales text -20CII 2G Ex ia IIC T6...T1 Gb
Contact differential [bar] 0.1 bar
Contact function SPDT (neutral zone)
Contact rating Ci=0.5 nF
Ii=0.5 A
Pi=1 W
Ui=29 V
Li=0.2 uH
Diff.press.setting range [bar] [Max] 1.5 bar
Diff.press.setting range [bar] [Min] 0.1 bar
Diff.press.setting range [MPa] [Max] 0.15 MPa
Diff.press.setting range [MPa] [Min] 0.01 MPa
Diff.press.setting range [psi] [Max] 22 psi
Diff.press.setting range [psi] [Min] 1.5 psi
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Factory setting [bar] 0.12 bar
Factory setting [MPa] 0.012 MPa
Factory setting [psig] 2 psig
Max. test pressure [bar] Pe 13 bar
Max. test pressure [psig] 188 psig
Max. Working Pressure [bar] 11 bar
Max. Working Pressure [psig] 160 psig
Operat. range LP side [bar] Pe [Max] 9 bar
Operat. range LP side [bar] Pe [Min] -1 bar
Operat. range LP side [psig]Pe [Max] 131 psig
Operat. range LP side [psig]Pe [Min] -15 psig
Packing format Multi pack
Pressure connection size 3/8
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] Pe [Max] 9 bar
Pressure range [bar] Pe [Min] -1 bar
Product accessories Generic accessories
Switches accessories
Product description Diff. Pressure Switch
Product family name RT Pressure switch
Product group Switches and thermostats
Product name Differential pressure switch
Quantity per packing format 9 pc
Reset function Auto
Serviceable Contact systems
Type RT262AE
Alarm Signal Falling
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -50 °C
Ambient temperature range [°F] [Max] 158 °F
Ambient temperature range [°F] [Min] -58 °F
Ammonia application Yes
Approval ATEX - Cat. 2 - Zone 1
CCC
CE
EAC
PZH
RMRS
RoHS
RoHS China
TYSK
ATEX Sales text -20CII 2G Ex ia IIC T6...T1 Gb
Contact differential [bar] 0.1 bar
Contact function SPDT (neutral zone)
Contact rating Ci=0.5 nF
Ii=0.5 A
Pi=1 W
Ui=29 V
Li=0.2 uH
Diff.press.setting range [bar] [Max] 1.5 bar
Diff.press.setting range [bar] [Min] 0.1 bar
Diff.press.setting range [MPa] [Max] 0.15 MPa
Diff.press.setting range [MPa] [Min] 0.01 MPa
Diff.press.setting range [psi] [Max] 22 psi
Diff.press.setting range [psi] [Min] 1.5 psi
Electrical conn. Male/Female Female
Electrical connection Screwed cable entry
Electrical connection size 2xPg 13.5
Electrical connection standard DIN 40430
Electrical spec. standard EN 60947-4/-5
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
Short circuit prot, fuse: 10A
EN 60947 wiring properties Flex, ferrules: 0.2-1.5 mm2
Flex, no ferrules: 0.2-2.5 mm2
Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP IP66
Factory setting [bar] 0.12 bar
Factory setting [MPa] 0.012 MPa
Factory setting [psig] 2 psig
Max. test pressure [bar] Pe 13 bar
Max. test pressure [psig] 188 psig
Max. Working Pressure [bar] 11 bar
Max. Working Pressure [psig] 160 psig
Operat. range LP side [bar] Pe [Max] 9 bar
Operat. range LP side [bar] Pe [Min] -1 bar
Operat. range LP side [psig]Pe [Max] 131 psig
Operat. range LP side [psig]Pe [Min] -15 psig
Packing format Multi pack
Pressure connection size 3/8
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] Pe [Max] 9 bar
Pressure range [bar] Pe [Min] -1 bar
Product accessories Generic accessories
Switches accessories
Product description Diff. Pressure Switch
Product family name RT Pressure switch
Product group Switches and thermostats
Product name Differential pressure switch
Quantity per packing format 9 pc
Reset function Auto
Serviceable Contact systems
Type RT262AE
Reset function: Auto, Contact function: SPDT (neutral zone)
