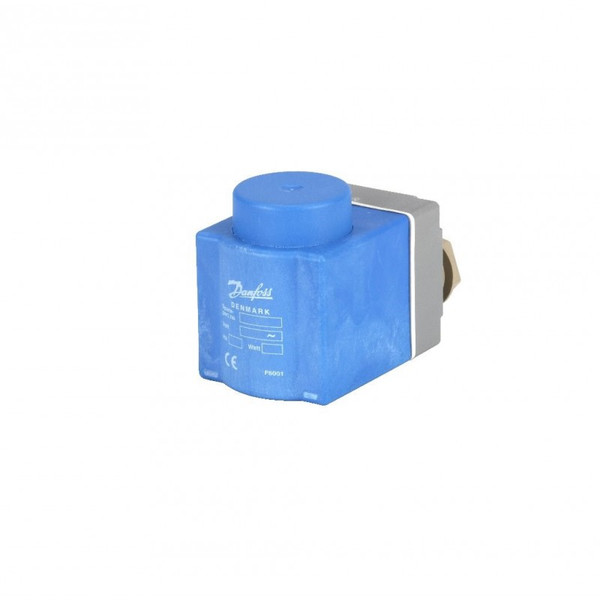

Type Code BE440AS , Weight 0.295 Kg , Actuator size 13.5 mm , Ambient temp. range -40 - 80 °C , Ambient temp. range -40 - 175 °F More detailsAmbient temperature: -40 - +80°C (NC valve), -40 - +55°C (NO valve). Permissible voltage variation: +10 - -15%, as double frequency coils: ±10%, a.c. coils for 220-230 / 380-400 V: +6 - -15%, as double frequency coils: +6 - -10%. Enclosure: IP 67. Terminal box: Leads are connected to terminal screws in the terminal box. The box is fitted with a Pg 13.5 screwed entry for 6 - 14 mm cable. Max. lead cross section: 2.5 mm2. Holding: 10 W/21 VA. Inrush: 44 VA
| Type Code | BE440AS |
| Weight | 0.295 Kg |
| Actuator size | 13.5 mm |
| Ambient temp. range | -40 - 80 °C |
| Ambient temp. range | -40 - 175 °F |
| Approval | LLC CDC TYSK |
| Coil conn. | CONNECTION BOX |
| Colour | Blue |
| EAN no. | 5702428023023 |
| Encl. | IP67 |
| Freq. | 50 HZ |
| Power consumpt. | 10,0 W |
| Prod. Group | Solenoid valves |
| Prod. name | Solenoid coil |
| Spare part no. | 018F6179 |
| Supply volt. AC | 440 V |
| Type design. | BE440AS |
