Description

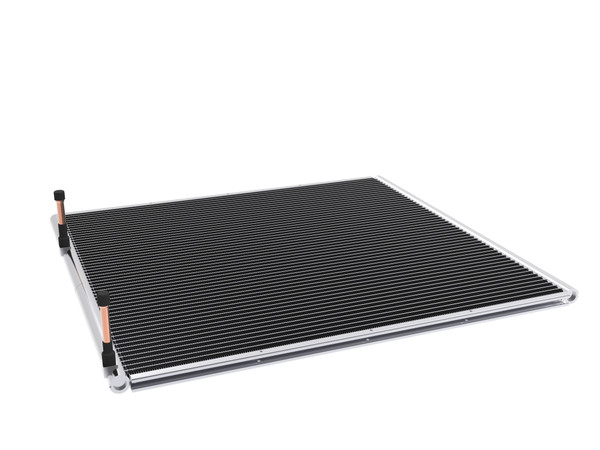

Type: MCHE D1300-C, Type designation: D1300-C, Coil height [mm]: 516.9, Coil Length [mm]: 552, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, -40 °C - 121 °C
Product details
| Gross weight | 2.17 kg |
| Net weight | 1.44 kg |
| EAN | 5702428823029 |
| Gross weight | 2.17 kg |
| Net weight | 1.44 kg |
| EAN | 5702428823029 |
| Application area | Refrigeration Air Conditioning |
| Approval | EAC UL PED |
| Approval file name | CE-0062-PED-H-DMC 001-17-CHN EAC RU С-DK.ÐД75.B.00162 SA33862 |
| Body material | Aluminium |
| Coil depth [in] | 0.63 in |
| Coil depth [mm] | 16 mm |
| Coil height [in] | 20.35 in |
| Coil height [mm] | 516.9 mm |
| Coil Length [in] | 21.73 in |
| Coil Length [mm] | 552 mm |
| Connection material | Copper |
| Design pressure [MPa] | 4.5 MPa |
| Design pressure [psig] | 653 psig |
| Fin pitch [mm] | 1.1 mm |
| Flow direction | Single-flow |
| Fluid Group | I |
| Identical product | 021U0083 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 IN |
| Inlet size [mm] | 9.52 mm |
| Internal volume [cm3] | 400 cm3 |
| Internal volume [in3] | 24.4 in3 |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Mounting bar material | ALUMINIUM |
| Number of tubes [pcs] | 52 |
| Object | 021U0090 |
| Operation Ambient Temp [°C] [Max] | 72 °C |
| Operation Ambient Temp [°C] [Min] | -40 °C |
| Operation Ambient Temp [°F] [Max] | 162 °F |
| Operation Ambient Temp [°F] [Min] | -40 °F |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 5/16 in |
| Outlet size [mm] | 7.94 mm |
| Packing format | Industrial pack |
| Part Number | DF0141 |
| Product accessories | No |
| Product group | Heat exchangers |
| Product name | Micro Channel heat exchanger |
| Project Name | EAM STANDARD COIL D1300-C |
| Quantity per packing format | 32 pc |
| Rated cap. conditions [IMP] | Ambient temp.=95 °F Delta t=21.6 °F Subcooling=9 °F Air speed=591 ft/min |
| Rated cap. conditions [SI] | Ambient temp.=35 °C Delta t=12 °C Subcooling=5 °C Air speed=3 m/s |
| Rated capacity R410A [kW] | 6.8 kW |
| Rated capacity R410A [TR] | 1.93 tons |
| Refrigerants | R410A R1234ze R134a R290 R32 R452B R454B R1234yf R404A R407C R448A R449A R452A R513A |
| Serviceable | No |
| Temperature range [°C] [Max] | 121 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 250 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | MCHE D1300-C |
| Type designation | D1300-C |
| Application area | Refrigeration Air Conditioning |
| Approval | EAC UL PED |
| Approval file name | CE-0062-PED-H-DMC 001-17-CHN EAC RU С-DK.ÐД75.B.00162 SA33862 |
| Body material | Aluminium |
| Coil depth [in] | 0.63 in |
| Coil depth [mm] | 16 mm |
| Coil height [in] | 20.35 in |
| Coil height [mm] | 516.9 mm |
| Coil Length [in] | 21.73 in |
| Coil Length [mm] | 552 mm |
| Connection material | Copper |
| Design pressure [MPa] | 4.5 MPa |
| Design pressure [psig] | 653 psig |
| Fin pitch [mm] | 1.1 mm |
| Flow direction | Single-flow |
| Fluid Group | I |
| Identical product | 021U0083 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 IN |
| Inlet size [mm] | 9.52 mm |
| Internal volume [cm3] | 400 cm3 |
| Internal volume [in3] | 24.4 in3 |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Mounting bar material | ALUMINIUM |
| Number of tubes [pcs] | 52 |
| Object | 021U0090 |
| Operation Ambient Temp [°C] [Max] | 72 °C |
| Operation Ambient Temp [°C] [Min] | -40 °C |
| Operation Ambient Temp [°F] [Max] | 162 °F |
| Operation Ambient Temp [°F] [Min] | -40 °F |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 5/16 in |
| Outlet size [mm] | 7.94 mm |
| Packing format | Industrial pack |
| Part Number | DF0141 |
| Product accessories | No |
| Product group | Heat exchangers |
| Product name | Micro Channel heat exchanger |
| Project Name | EAM STANDARD COIL D1300-C |
| Quantity per packing format | 32 pc |
| Rated cap. conditions [IMP] | Ambient temp.=95 °F Delta t=21.6 °F Subcooling=9 °F Air speed=591 ft/min |
| Rated cap. conditions [SI] | Ambient temp.=35 °C Delta t=12 °C Subcooling=5 °C Air speed=3 m/s |
| Rated capacity R410A [kW] | 6.8 kW |
| Rated capacity R410A [TR] | 1.93 tons |
| Refrigerants | R410A R1234ze R134a R290 R32 R452B R454B R1234yf R404A R407C R448A R449A R452A R513A |
| Serviceable | No |
| Temperature range [°C] [Max] | 121 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 250 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | MCHE D1300-C |
| Type designation | D1300-C |
