Description

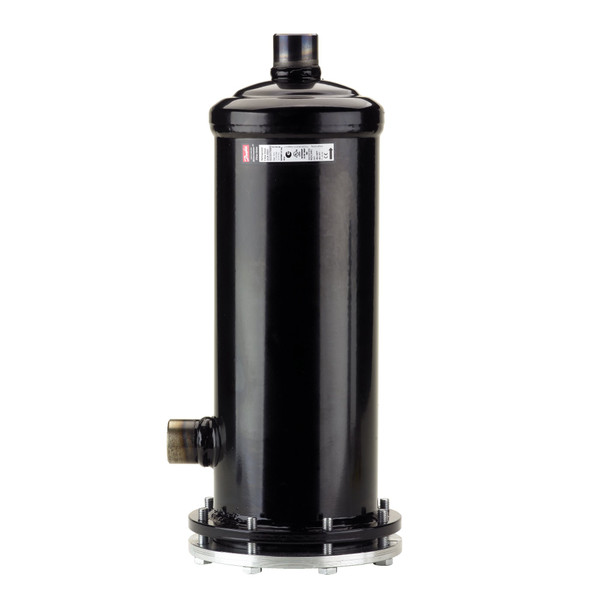

Product name: Filter drier, shell
Product details
| Gross weight | 4.87 kg |
| Net weight | 4.71 kg |
| EAN | 5702428249409 |
| Gross weight | 4.87 kg |
| Net weight | 4.71 kg |
| EAN | 5702428249409 |
| Approval | CE CSA UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | I |
| Connection material | Steel |
| Connection options | Butt weld/Solder, ODF |
| Connection Solder size [in] | 7/8 in |
| Connection Solder size [mm] | 22 mm |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 3/4 in |
| Core Size code | 48 cu.in. |
| Cover | Plug |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Liq Cap [Kw] | R1234ze: 112.7 R134a: 127.0 R404A: 89.3 R407C: 130.1 R410A: 132.1 R452A: 90.4 R507: 86.6 |
| Liq Cap [TR] | R1234ze: 32.1 R134a: 36.1 R404A: 25.4 R407C: 37.0 R410A: 37.6 R452A: 25.7 R507: 24.6 |
| LiqCap Cond (ARI 710-2004)[SI] | R1234ze: 112.7 R134a: 127.0 R404A: 89.3 R407C: 130.1 R410A: 132.1 R452A: 90.4 R507: 86.6 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2004)[IMP] | DELTA P=1PSI TLIQ= 86°F TVAP=5°F |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 50.44 oz |
| Net volume [l] | 1.492 L |
| Number of cores | 1 |
| Packing format | Single pack |
| Parts included | 1 cov 2 felt gaskets 8 Bolts |
| Parts Program name | DCR |
| Pressure Design | Normal Pressure |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Product family name | DCR-DA DCR-DC DCR-DM |
| Product group | Filter driers |
| Product name | Filter drier, shell |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Replace comp1 (Danfoss code) | 023Z9051 |
| Replace comp2 (Danfoss code) | 023Z2871 |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 65.76 oz |
| Shell volume [l] | 1.94 L |
| Specification key | DCR 0487 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCR |
| Type designation | DCR 0487 |
| UL approval file name | SA6398 |
| Approval | CE CSA UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | I |
| Connection material | Steel |
| Connection options | Butt weld/Solder, ODF |
| Connection Solder size [in] | 7/8 in |
| Connection Solder size [mm] | 22 mm |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 3/4 in |
| Core Size code | 48 cu.in. |
| Cover | Plug |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Liq Cap [Kw] | R1234ze: 112.7 R134a: 127.0 R404A: 89.3 R407C: 130.1 R410A: 132.1 R452A: 90.4 R507: 86.6 |
| Liq Cap [TR] | R1234ze: 32.1 R134a: 36.1 R404A: 25.4 R407C: 37.0 R410A: 37.6 R452A: 25.7 R507: 24.6 |
| LiqCap Cond (ARI 710-2004)[SI] | R1234ze: 112.7 R134a: 127.0 R404A: 89.3 R407C: 130.1 R410A: 132.1 R452A: 90.4 R507: 86.6 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2004)[IMP] | DELTA P=1PSI TLIQ= 86°F TVAP=5°F |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 50.44 oz |
| Net volume [l] | 1.492 L |
| Number of cores | 1 |
| Packing format | Single pack |
| Parts included | 1 cov 2 felt gaskets 8 Bolts |
| Parts Program name | DCR |
| Pressure Design | Normal Pressure |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Product family name | DCR-DA DCR-DC DCR-DM |
| Product group | Filter driers |
| Product name | Filter drier, shell |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Replace comp1 (Danfoss code) | 023Z9051 |
| Replace comp2 (Danfoss code) | 023Z2871 |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 65.76 oz |
| Shell volume [l] | 1.94 L |
| Specification key | DCR 0487 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCR |
| Type designation | DCR 0487 |
| UL approval file name | SA6398 |
