Description

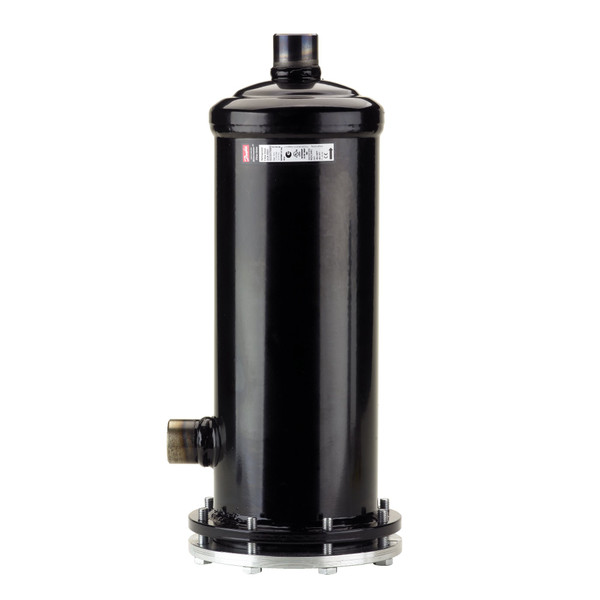

Product name: Filter drier, shell
Product details
| Gross weight | 10.24 kg |
| Net weight | 9.12 kg |
| EAN | 5702428125314 |
| Gross weight | 10.24 kg |
| Net weight | 9.12 kg |
| EAN | 5702428125314 |
| Approval | CE CSA UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | I |
| Connection material | Steel |
| Connection options | Butt weld/Solder, ODF |
| Connection Solder size [in] | 2 5/8 in |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 2 1/2 in |
| Core Size code | 192 cu.in. |
| Cover | Plug |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Liq Cap [Kw] | R1234ze: 408.3 R134a: 459.9 R404A: 323.5 R407C: 471.4 R410A: 478.6 R452A: 327.6 R507: 313.7 |
| Liq Cap [TR] | R1234ze: 116.1 R134a: 130.8 R404A: 92.0 R407C: 134.0 R410A: 136.1 R452A: 93.1 R507: 89.2 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2004)[IMP] | DELTA P=1PSI TLIQ= 86°F TVAP=5°F |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| MWP comments | 35_bar/508_psig_as_receiver 35_bar/508_psig_with_48-F |
| Net volume [foz US] | 155.8 oz |
| Net volume [l] | 4.608 L |
| Number of cores | 4 |
| Packing format | Single pack |
| Parts included | 1 cov 8 Bolts 8 felt gaskets |
| Parts Program name | DCR |
| Pressure Design | Normal Pressure |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Product family name | DCR-DA DCR-DC DCR-DM |
| Product group | Filter driers |
| Product name | Filter drier, shell |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Replace comp1 (Danfoss code) | 023Z9086 |
| Replace comp2 (Danfoss code) | 023Z2871 |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 213.27 oz |
| Shell volume [l] | 6.3 L |
| Specification key | DCR 19221 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCR |
| Type designation | DCR 19221 |
| UL approval file name | SA6398 |
