Description

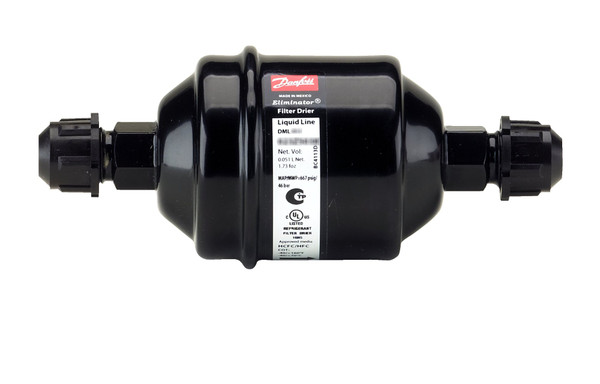

Product name: Hermetic filter drier, Inlet connection type: FLARE, Outlet connection type: FLARE
Product details
| Gross weight | 0.24 kg |
| Net weight | 0.2 kg |
| EAN | 5702428155328 |
| Gross weight | 0.24 kg |
| Net weight | 0.2 kg |
| EAN | 5702428155328 |
| Acid capacity [g] | 0.53 g |
| Acid capacity [oz] | 0.019 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 03 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 76 R290: -- R32: 64 R404A: 79 R407C: 74 R410A: 69 R507: 83 |
| Drying Cap[Drops of Water]52°C | R134a: 69 R290: -- R32: 59 R404A: 75 R407C: 68 R410A: 61 R507: 74 |
| Flow capacity [kW] | R290: -- R404A: 8.5 R134a: 12.1 R32: 18.4 R407C: 12.4 R410A: 12.6 R507: 8.2 |
| Flow capacity [TR] | R134a: 3.4 R290: -- R32: 5.2 R404A: 2.4 R407C: 3.5 R410A: 3.6 R507: 2.3 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 3/8 in |
| Inlet connection size [mm] | 10 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 1.72 oz |
| Net volume [l] | 0.051 L |
| Outlet 1 connection size [in] | 3/8 in |
| Outlet connection size [mm] | 10 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product family name | DCL |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 32 pc |
| Refrigerants | R1234yf R1234ze R125 R134a R22/R407C R23 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A |
| Serviceable | No |
| Shell volume [foz US] | 2.44 oz |
| Shell volume [l] | 0.07 L |
| Solid core surface [cm2] | 59 cm2 |
| Solid core surface [in2] | 9.1 in2 |
| Solid core volume [cm3] | 21 cm3 |
| Solid core volume [in3] | 1.3 in3 |
| Specification key | DCL 033 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 033 |
| UL approval file name | SA6398 |
| Acid capacity [g] | 0.53 g |
| Acid capacity [oz] | 0.019 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 03 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 76 R290: -- R32: 64 R404A: 79 R407C: 74 R410A: 69 R507: 83 |
| Drying Cap[Drops of Water]52°C | R134a: 69 R290: -- R32: 59 R404A: 75 R407C: 68 R410A: 61 R507: 74 |
| Flow capacity [kW] | R290: -- R404A: 8.5 R134a: 12.1 R32: 18.4 R407C: 12.4 R410A: 12.6 R507: 8.2 |
| Flow capacity [TR] | R134a: 3.4 R290: -- R32: 5.2 R404A: 2.4 R407C: 3.5 R410A: 3.6 R507: 2.3 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 3/8 in |
| Inlet connection size [mm] | 10 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 1.72 oz |
| Net volume [l] | 0.051 L |
| Outlet 1 connection size [in] | 3/8 in |
| Outlet connection size [mm] | 10 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product family name | DCL |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 32 pc |
| Refrigerants | R1234yf R1234ze R125 R134a R22/R407C R23 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A |
| Serviceable | No |
| Shell volume [foz US] | 2.44 oz |
| Shell volume [l] | 0.07 L |
| Solid core surface [cm2] | 59 cm2 |
| Solid core surface [in2] | 9.1 in2 |
| Solid core volume [cm3] | 21 cm3 |
| Solid core volume [in3] | 1.3 in3 |
| Specification key | DCL 033 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 033 |
| UL approval file name | SA6398 |
Product details
| Gross weight | 0.24 kg |
| Net weight | 0.2 kg |
| EAN | 5702428155328 |
| Gross weight | 0.24 kg |
| Net weight | 0.2 kg |
| EAN | 5702428155328 |
| Acid capacity [g] | 0.53 g |
| Acid capacity [oz] | 0.019 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 03 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 76 R290: -- R32: 64 R404A: 79 R407C: 74 R410A: 69 R507: 83 |
| Drying Cap[Drops of Water]52°C | R134a: 69 R290: -- R32: 59 R404A: 75 R407C: 68 R410A: 61 R507: 74 |
| Flow capacity [kW] | R290: -- R404A: 8.5 R134a: 12.1 R32: 18.4 R407C: 12.4 R410A: 12.6 R507: 8.2 |
| Flow capacity [TR] | R134a: 3.4 R290: -- R32: 5.2 R404A: 2.4 R407C: 3.5 R410A: 3.6 R507: 2.3 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 3/8 in |
| Inlet connection size [mm] | 10 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 1.72 oz |
| Net volume [l] | 0.051 L |
| Outlet 1 connection size [in] | 3/8 in |
| Outlet connection size [mm] | 10 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product family name | DCL |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 32 pc |
| Refrigerants | R1234yf R1234ze R125 R134a R22/R407C R23 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A |
| Serviceable | No |
| Shell volume [foz US] | 2.44 oz |
| Shell volume [l] | 0.07 L |
| Solid core surface [cm2] | 59 cm2 |
| Solid core surface [in2] | 9.1 in2 |
| Solid core volume [cm3] | 21 cm3 |
| Solid core volume [in3] | 1.3 in3 |
| Specification key | DCL 033 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 033 |
| UL approval file name | SA6398 |
| Acid capacity [g] | 0.53 g |
| Acid capacity [oz] | 0.019 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 03 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 76 R290: -- R32: 64 R404A: 79 R407C: 74 R410A: 69 R507: 83 |
| Drying Cap[Drops of Water]52°C | R134a: 69 R290: -- R32: 59 R404A: 75 R407C: 68 R410A: 61 R507: 74 |
| Flow capacity [kW] | R290: -- R404A: 8.5 R134a: 12.1 R32: 18.4 R407C: 12.4 R410A: 12.6 R507: 8.2 |
| Flow capacity [TR] | R134a: 3.4 R290: -- R32: 5.2 R404A: 2.4 R407C: 3.5 R410A: 3.6 R507: 2.3 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 3/8 in |
| Inlet connection size [mm] | 10 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 1.72 oz |
| Net volume [l] | 0.051 L |
| Outlet 1 connection size [in] | 3/8 in |
| Outlet connection size [mm] | 10 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product family name | DCL |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 32 pc |
| Refrigerants | R1234yf R1234ze R125 R134a R22/R407C R23 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A |
| Serviceable | No |
| Shell volume [foz US] | 2.44 oz |
| Shell volume [l] | 0.07 L |
| Solid core surface [cm2] | 59 cm2 |
| Solid core surface [in2] | 9.1 in2 |
| Solid core volume [cm3] | 21 cm3 |
| Solid core volume [in3] | 1.3 in3 |
| Specification key | DCL 033 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 033 |
| UL approval file name | SA6398 |
