Description

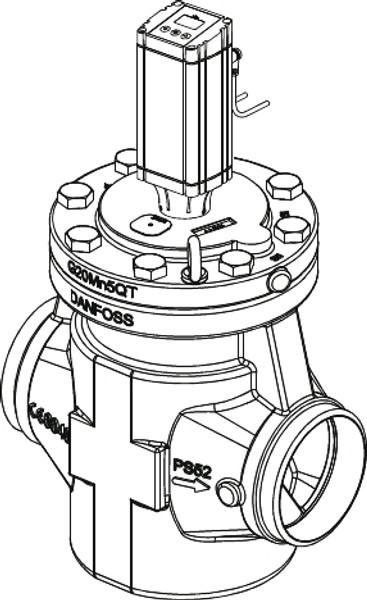

ICM 125 Repair kit, Used for product: ICM 125
Product details
| Gross weight | 87.5 kg |
| Net weight | 83.5 kg |
| EAN | 5702428229685 |
| Gross weight | 87.5 kg |
| Net weight | 83.5 kg |
| EAN | 5702428229685 |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Category | III |
| Comments | ICV 125 125 DIN |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 260 gal/min |
| Direction | Straightway |
| Equipment | Cap |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Further information | ICV 125 125 DIN |
| Inlet connection size [in] | 5 in |
| Inlet connection size [mm] | 125 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 223 m3/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MaxOPD [bar] | 20 bar |
| MaxOPD [psig] | 271.2903 psig |
| Open/close time [s] | 35 ' |
| Outlet connection size [in] | 5 in |
| Outlet connection size [mm] | 125 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Motor operated valve |
| Product group | Press. and temp. regul. valves |
| Product name | Motor operated valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | ICM 125 |
| Valve operation | Motor operated |
| Valve version | Standard version |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Category | III |
| Comments | ICV 125 125 DIN |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 260 gal/min |
| Direction | Straightway |
| Equipment | Cap |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Further information | ICV 125 125 DIN |
| Inlet connection size [in] | 5 in |
| Inlet connection size [mm] | 125 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 223 m3/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MaxOPD [bar] | 20 bar |
| MaxOPD [psig] | 271.2903 psig |
| Open/close time [s] | 35 ' |
| Outlet connection size [in] | 5 in |
| Outlet connection size [mm] | 125 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Motor operated valve |
| Product group | Press. and temp. regul. valves |
| Product name | Motor operated valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Type | ICM 125 |
| Valve operation | Motor operated |
| Valve version | Standard version |
