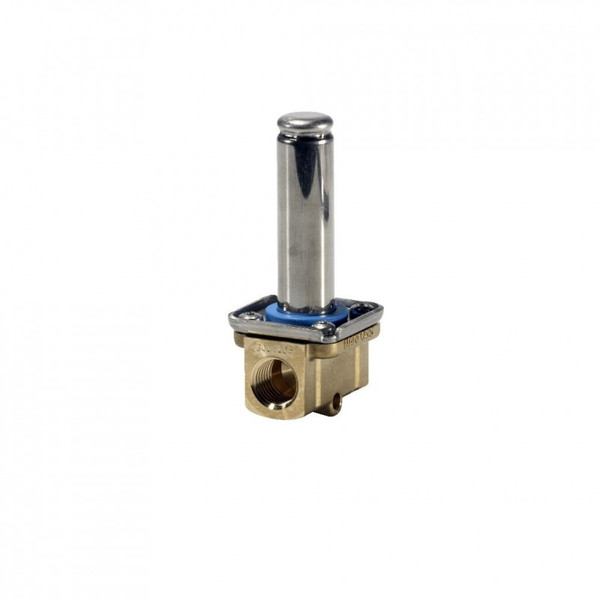

Type Code EV210B , Weight 0.199 Kg , Actuator size 13.5 mm , Actuator size 0.53 in , Ambient temp. max. 80 °C More detailsEV210B covers a wide range of direct-operated 2/2-way solenoid valves for universal use. EV210B is a real robust valve program with high performance and can be used in all kind of tough working conditions.
| Type Code | EV210B |
| Weight | 0.199 Kg |
| Actuator size | 13.5 mm |
| Actuator size | 0.53 in |
| Ambient temp. max. | 80 °C |
| Ambient temp. max. | 176 °F |
| Body mat. | Brass |
| Connection | G 1/4 |
| Conn. Int./Ext. | Internal |
| Conn. std. | ISO 228-1 |
| Cv value | 0,350 gpm US |
| Diff. pressure | 0 - 10 bar |
| Diff. pressure | 0,0 - 142,9 psi |
| EAN no. | 5702423005994 |
| Function | N C |
| Kv value | 0,300 m3/h |
| Max. Working Pressure | 35,0 bar |
| Max. Working Pressure | 510 psig |
| Medium temp. range | -10 - 100 °C |
| Medium temp. range | 15 - 210 °F |
| Number of ways | 2/2 |
| Operation | Direct-operated |
| Orifice size | 3,00 mm |
| Orifice size | 1/8 in |
| Seal mat. | PTFE |
| Type designation | Solenoid valve |
