Description
Type Code CI 50 , Weight 0.820 Kg , AC-1 Ith, open 80,0 A More details

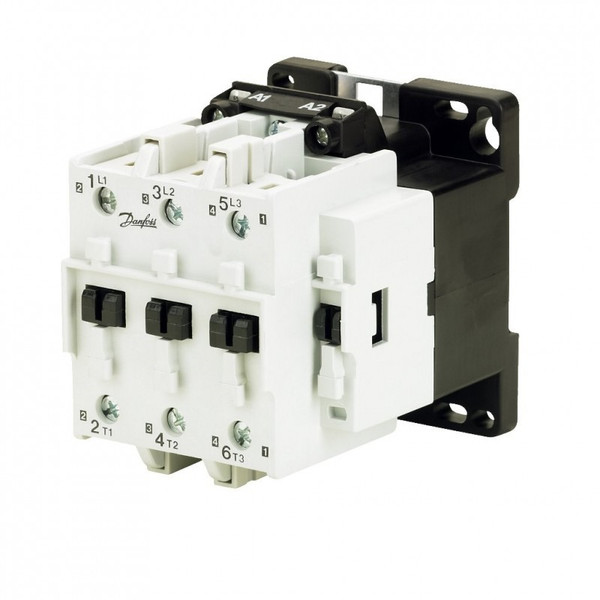

The contactor programme CI 6-50 is based on three frame sizes. The smallest frame size consists of CI 6-15 (2.2-7.5 kW), the middle contains the CI 16-30 range (7.5-15 kW) and the largest frame size is represented by the CI 32-50 (15-25 kW). All frame sizes are provided with three NO main contacts. CI 6-15 are available with four NO main contacts. Compact design in three frame sizes Screw or DIN rail mounting Power range 2.2 to 25 kW For ac/dc coil voltages
| Type Code | CI 50 |
| Weight | 0.820 Kg |
| AC-1 Ith, open | 80,0 A |
| AC-1 load Ithe, encl. | 80,0 A |
| AC-3 Ie | 52,0 A |
| AC-3 power [220-240 V] | 15,0 kW |
| AC-3 power [380-690 V] | 25,0 kW |
| Approval | CE, DNV, EAC, LR, UL |
| Coil volt. @50 Hz | 380 - 400 V |
| Coil volt. @60 Hz | 440 V |
| EAN no. | 5702423057498 |
| Identical prod. | 037H4080 |
| Main contacts | 3 |
| Max. add-on aux. contacts | 4 |
| Descript. | CONTACTOR |
| Prod. Group | Contactors and motor starters |
| Prod. name | CONTACTOR |
| UL approval file | E63581 |
