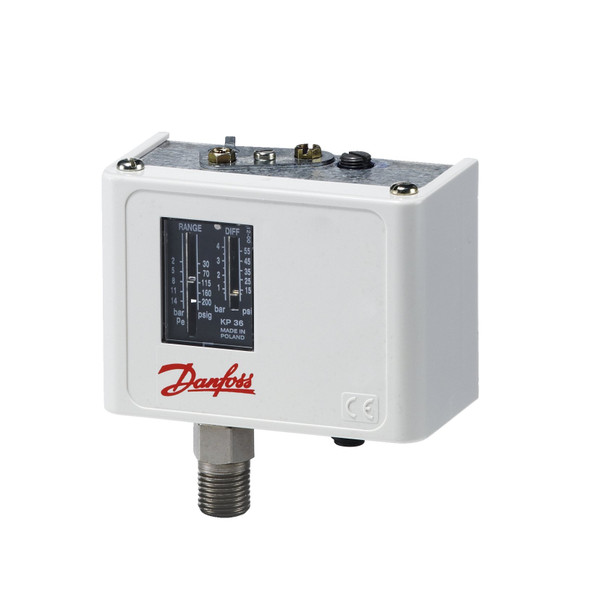

060-114466 Danfoss Pressure switch, KP36

Write a Review
SKU:
060-114466
Availability:
2 - 3 weeks
97.31€

Product details Gross weight 0.34 kg Net weight 0.3 kg EAN 5702423148721 Gross weight 0.34 kg Net weight 0.3 kg …

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.34 kg
Net weight 0.3 kg
EAN 5702423148721
Gross weight 0.34 kg
Net weight 0.3 kg
EAN 5702423148721



Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max] 65 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 149 °F
Ambient temperature range [°F] [Min] -40 °F
Approval CCC
CE
EAC
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
CMIM
Contact function SPDT gold
Contact rating AC15=4 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
for gold 1…30 mA, 5...30 V
AC3=6 A, 400 V
Differential [bar] [Max] 2 bar
Differential [bar] [Min] 0.5 bar
Differential [psi] [Max] 29 psi
Differential [psi] [Min] 7 psi
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
Max. test pressure [bar] Pe 22 bar
Max. test pressure [psig] 319 psig
Max. Working Pressure [bar] 17 bar
Max. Working Pressure [psig] 245 psig
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range category Medium pressure
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product family name KP Pressure switch
Product group Switches and thermostats
Product name Pressure switch
Quantity per packing format 36 pc
Regulation range [bar] Pe [Max] 12 bar
Regulation range [bar] Pe [Min] 4 bar
Regulation range [psig] Pe [Max] 174 psig
Regulation range [psig] Pe [Min] 58 psig
Reset function Auto
Serviceable No
Type KP36
UL approval file name E31024
MH27572
Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max] 65 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 149 °F
Ambient temperature range [°F] [Min] -40 °F
Approval CCC
CE
EAC
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
CMIM
Contact function SPDT gold
Contact rating AC15=4 A, 400 V
AC1=10 A, 400 V
DC13=12 W, 220 V
for gold 1…30 mA, 5...30 V
AC3=6 A, 400 V
Differential [bar] [Max] 2 bar
Differential [bar] [Min] 0.5 bar
Differential [psi] [Max] 29 psi
Differential [psi] [Min] 7 psi
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
Max. test pressure [bar] Pe 22 bar
Max. test pressure [psig] 319 psig
Max. Working Pressure [bar] 17 bar
Max. Working Pressure [psig] 245 psig
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range category Medium pressure
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product family name KP Pressure switch
Product group Switches and thermostats
Product name Pressure switch
Quantity per packing format 36 pc
Regulation range [bar] Pe [Max] 12 bar
Regulation range [bar] Pe [Min] 4 bar
Regulation range [psig] Pe [Max] 174 psig
Regulation range [psig] Pe [Min] 58 psig
Reset function Auto
Serviceable No
Type KP36
UL approval file name E31024
MH27572
Product name: Pressure switch, Type: KP36, Reset function: Auto, Contact function: SPDT gold, Regulation range [bar] Pe: 4.00 - 12.00, Regulation range [psig] Pe: 58.00 - 174.00, Pressure connection size: 1/4, Pressure connection type: G, Pressure Male/Female: Male
