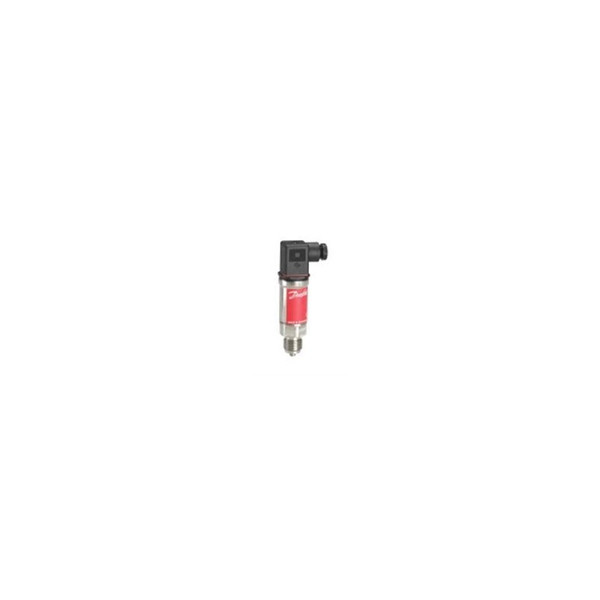

Type Code MBS 32 , Weight 0.232 Kg , - common PIN 2 , + output PIN 3 , + supply PIN 1 More detailsMBS 32 pressure transmitters are designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers all standard voltage outputs, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections. Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements. 0-5 V, 1-5 V, 1-6 V or 0-10 V output signals Operating temperature -40 to 85 °C Measuring range 0 - 600 bar A wide range of pressure connections available For use in severe industrial environments
| Type Code | MBS 32 |
| Weight | 0.232 Kg |
| - common | PIN 2 |
| + output | PIN 3 |
| + supply | PIN 1 |
| Accuracy (max.) ±FS | 0,80 % |
| Accuracy (typ.) ±FS | 0,3 % |
| Adj. zero point/span | No |
| Ambient temp. | -40 - 85 °C |
| Ambient temp. | -40 - 185 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Compensated temp. range | 0 - 80 °C |
| Compensated temp. range | 32 - 176 °F |
| EAN no. | 5702423063383 |
| Electr. conn. type | Pg 9, EN 175301-803-A, Male and Female |
| Encl. | IP65 |
| Flush diaphr. | No |
| Intrins. safe | No |
| Medium temp. range | -40 - 85 °C |
| Medium temp. range | -40 - 185 °F |
| Non-linearity BFSL ±FS [%] | 0,20 % |
| Output sign. type | 0 - 10 V |
| Overload press. max. | 20,0 bar |
| Overload press. max. | 2,0 MPa |
| Pressure conn. HEX | 27,0 |
| Pressure conn. std. | EN 837 |
| Pressure conne. type | G - 1/2 Male |
| Pressure range | 0,00 - 6,00 bar |
| Pressure range | 0,00 - 600,00 kPa |
| Press. unit ref. | Absolute |
| Pulse-snubber | No |
| Response time max. | 4 ms |
| Spec. key | MBS 32-1825-1AB08 |
| Supply current max. | 8 mA |
| Supply volt. | 15,00 - 30,00 V |
