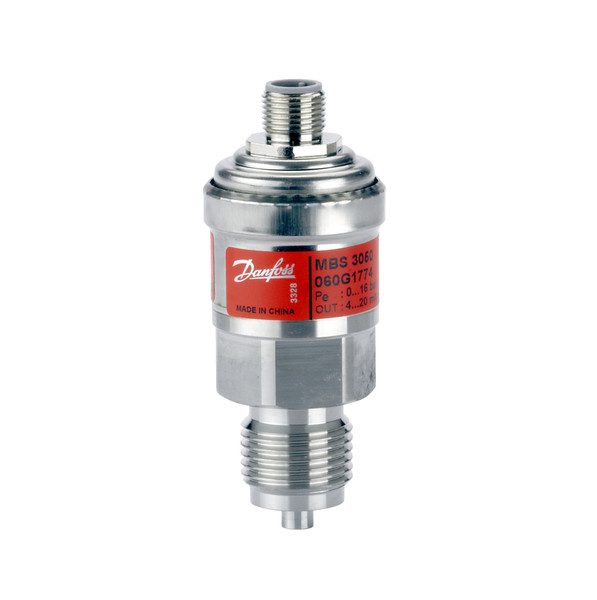

060G1774 Danfoss Pressure transmitter, MBS 3050

Write a Review
SKU:
060G1774
Availability:
2 - 3 weeks
221.63€

Product details Gross weight 0.18 kg Net weight 0.17 kg EAN 5702423154111 Gross weight 0.18 kg Net weight 0.17 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.18 kg
Net weight 0.17 kg
EAN 5702423154111
Gross weight 0.18 kg
Net weight 0.17 kg
EAN 5702423154111



+ supply Pin 1
- common Pin 4
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -25 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -13 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 96 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 20 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-2211-E3AB08-0
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050
+ supply Pin 1
- common Pin 4
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -25 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -13 °F
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Flush diaphragm No
High Clipping Level 22.4
Intrinsically safe No
Low Clipping Level 3.6
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 96 bar
Packing format Multi pack
Pressure connection HEX [mm] 27 mm
Pressure connection size 1/2
Pressure connection standard EN 837
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 20 pc
Response time max. [ms] 4 ms
Specification key MBS 3050-2211-E3AB08-0
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 9 V
Type MBS 3050
Product name: Pressure transmitter, Type: MBS 3050, Pressure range [psi]: 0.00 - 232.06, Pressure range [bar]: 0.00 - 16.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: 4 pin, Electrical connection: M12 x 1
