Description

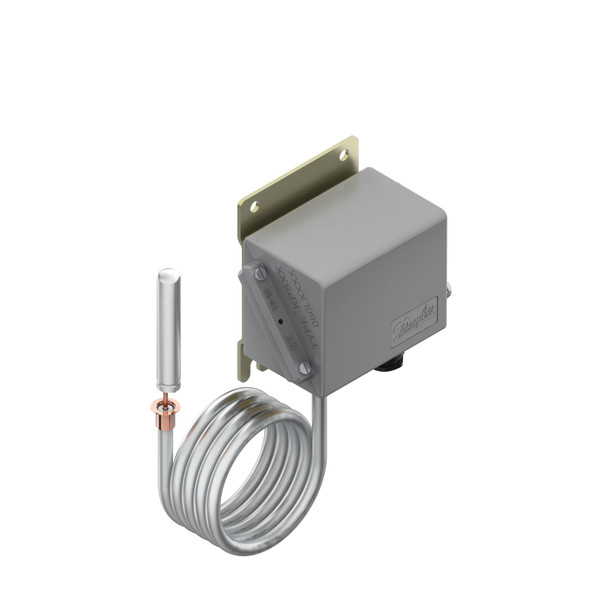

Product name: Thermostat, Type: CAS181, Contact function: SPDT, Sensor type: Remote bulb, Temperature range [°C] [Min]: 60, Temperature range [°C] [Max]: 150
Product details
| Gross weight | 1.52 kg |
| Net weight | 1.44 kg |
| EAN | 5702423148431 |
| Gross weight | 1.52 kg |
| Net weight | 1.44 kg |
| EAN | 5702423148431 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -32 °F |
| Approval | ABS BV CCC CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Armoring | Yes |
| Cap. tube length fraction [in] | 196 7/8 in |
| Capillary tube length [mm] | 5000 mm |
| Charge type | Adsorption |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC14=0.1 A, 220 V AC15=0.1 A, 220 V DC13=12 W, 125 V |
| Diff. @ Min. range setting [K] | 2.5 K |
| Differential type | Fixed (max. value) |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP67 |
| Max. sensor temperature [°C] | 250 °C |
| Max. sensor temperature [°F] | 482 °F |
| Packing format | Multi pack |
| Parts included | Gasket set |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product group | Switches and thermostats |
| Product name | Thermostat |
| Quantity per packing format | 10 pc |
| Sensor pocket length min. [in] | 4 3/8 in |
| Sensor pocket length min. [mm] | 110 mm |
| Sensor size (Ø x L) [in] | 1/2 x 3 1/2 in |
| Sensor size (Ø x L) [mm] | 13 x 90 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | 60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | 140 °F |
| Type | CAS181 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -32 °F |
| Approval | ABS BV CCC CE DNV EAC GL LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Armoring | Yes |
| Cap. tube length fraction [in] | 196 7/8 in |
| Capillary tube length [mm] | 5000 mm |
| Charge type | Adsorption |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC14=0.1 A, 220 V AC15=0.1 A, 220 V DC13=12 W, 125 V |
| Diff. @ Min. range setting [K] | 2.5 K |
| Differential type | Fixed (max. value) |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP67 |
| Max. sensor temperature [°C] | 250 °C |
| Max. sensor temperature [°F] | 482 °F |
| Packing format | Multi pack |
| Parts included | Gasket set |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Product group | Switches and thermostats |
| Product name | Thermostat |
| Quantity per packing format | 10 pc |
| Sensor pocket length min. [in] | 4 3/8 in |
| Sensor pocket length min. [mm] | 110 mm |
| Sensor size (Ø x L) [in] | 1/2 x 3 1/2 in |
| Sensor size (Ø x L) [mm] | 13 x 90 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | 60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | 140 °F |
| Type | CAS181 |
