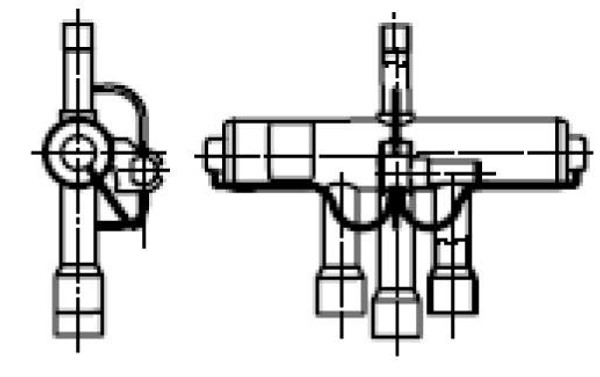

061L1219 Danfoss 4-way reversing valve, STF

Write a Review
SKU:
061L1219
Availability:
2 - 3 weeks
403.75€

Product details Gross weight 2.47 kg Net weight 1.51 kg EAN 5702428273510 Gross weight 2.47 kg Net weight 1.51 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 2.47 kg
Net weight 1.51 kg
EAN 5702428273510
Gross weight 2.47 kg
Net weight 1.51 kg
EAN 5702428273510



Ambient temperature range [°C] [Max] 55 °C
Ambient temperature range [°C] [Min] -20 °C
Ambient temperature range [°F] [Max] 131 °F
Ambient temperature range [°F] [Min] -4 °F
Approval CE
VDE
Cap condition 1 [°C] 0°C sub-cooling
38°C condensing
5°C evaporating
5°C super-heat
Cap condition 2 [°C] 54,4 °C condensing
5°C sub-cooling
5°C super-heat
7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW] 38.49 kW
Cap R407C@Δp:0.1bar(cond2)[kW] 35.56 kW
Cap R407C@Δp:0.2bar(cond1)[kW] 54.18 kW
Cap R407C@Δp:0.2bar(cond2)[kW] 50.08 kW
Cap R410A@Δp:0.1bar(cond1)[kW] 47.19 kW
Cap R410A@Δp:0.1bar(cond2)[kW] 42.52 kW
Cap R410A@Δp:0.2bar(cond1)[kW] 66.55 kW
Cap R410A@Δp:0.2bar(cond2)[kW] 59.98 kW
Coil No
Design config. Style B
Discharge conn size [in] 7/8
Discharge conn size [mm] 22.5 mm
Discharge conn type FEMALE
Evap/cond conn size [in] 1 1/8
Evap/cond conn size [mm] 28,9
Max. Leakage [cm³/min] 6000 cm3/min
MaxOPD [bar] 31 bar
MaxOPD [psig] 450 psig
Medium temperature range [°C] [Max] 130 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 266 °F
Medium temperature range [°F] [Min] -4 °F
MinODP [bar] 3 bar
MinODP [psi] 44 psi
Packing format Single pack
Process connection material Copper
Product group 4-way reversing valves
Product name 4-way reversing valve
Quantity per packing format 1 pc
Refrigerants R134a
R22
R404A
R407C
R410A
Shock resistance standard JIS C 60068-2-27
Suction conn size [in] 1 1/8
Suction conn size [mm] 28.9 mm
Type STF
Type designation STF-2011G3
Valve body temp. max. [°C] 130 °C
Vibration stability [m/s²] 19.6 m/s2
Vibration test standard JIS C 60068-2-6
Ambient temperature range [°C] [Max] 55 °C
Ambient temperature range [°C] [Min] -20 °C
Ambient temperature range [°F] [Max] 131 °F
Ambient temperature range [°F] [Min] -4 °F
Approval CE
VDE
Cap condition 1 [°C] 0°C sub-cooling
38°C condensing
5°C evaporating
5°C super-heat
Cap condition 2 [°C] 54,4 °C condensing
5°C sub-cooling
5°C super-heat
7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW] 38.49 kW
Cap R407C@Δp:0.1bar(cond2)[kW] 35.56 kW
Cap R407C@Δp:0.2bar(cond1)[kW] 54.18 kW
Cap R407C@Δp:0.2bar(cond2)[kW] 50.08 kW
Cap R410A@Δp:0.1bar(cond1)[kW] 47.19 kW
Cap R410A@Δp:0.1bar(cond2)[kW] 42.52 kW
Cap R410A@Δp:0.2bar(cond1)[kW] 66.55 kW
Cap R410A@Δp:0.2bar(cond2)[kW] 59.98 kW
Coil No
Design config. Style B
Discharge conn size [in] 7/8
Discharge conn size [mm] 22.5 mm
Discharge conn type FEMALE
Evap/cond conn size [in] 1 1/8
Evap/cond conn size [mm] 28,9
Max. Leakage [cm³/min] 6000 cm3/min
MaxOPD [bar] 31 bar
MaxOPD [psig] 450 psig
Medium temperature range [°C] [Max] 130 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 266 °F
Medium temperature range [°F] [Min] -4 °F
MinODP [bar] 3 bar
MinODP [psi] 44 psi
Packing format Single pack
Process connection material Copper
Product group 4-way reversing valves
Product name 4-way reversing valve
Quantity per packing format 1 pc
Refrigerants R134a
R22
R404A
R407C
R410A
Shock resistance standard JIS C 60068-2-27
Suction conn size [in] 1 1/8
Suction conn size [mm] 28.9 mm
Type STF
Type designation STF-2011G3
Valve body temp. max. [°C] 130 °C
Vibration stability [m/s²] 19.6 m/s2
Vibration test standard JIS C 60068-2-6
Ambient temperature range [°C] [Min]: -20, Ambient temperature range [°C] [Max]: 55
