Description

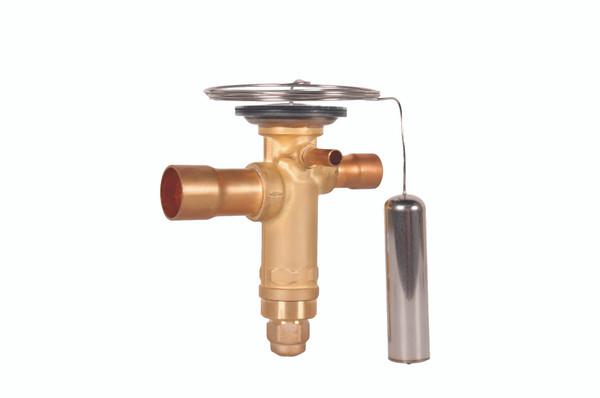

Product name: Thermostatic expansion valve, Type: TGE, Refrigerants: R134a, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Orifice capacities [TR]: 3.50
Product details
| Gross weight | 0.42 kg |
| Net weight | 0.36 kg |
| EAN | 5702428169639 |
| Gross weight | 0.42 kg |
| Net weight | 0.36 kg |
| EAN | 5702428169639 |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Body size | 10 |
| Bulb temperature max. [ºC] | 100 °C |
| Bulb temperature max. [ºF] | 210 °F |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Copper |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Factory setting (FS) [°C] | 5 °C |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 12 mm |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Orifice capacities [kW] | 12 kW |
| Orifice capacities [TR] | 3.5 tons |
| Orifice size | 6 |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product description | Thermostatic Expans. Valve |
| Product family name | TGE |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 12 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
| Rated cap. cond. Range N [SI] | tcond=38 °C tevap=4.4 °C tliq=37 °C |
| Refrigerants | R134a |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TGE |
| Valve body temp. max. [°C] | 100 °C |
| Valve body temp. max. [°F] | 210 °F |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Body size | 10 |
| Bulb temperature max. [ºC] | 100 °C |
| Bulb temperature max. [ºF] | 210 °F |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Copper |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | SOLDER, ODF |
| Equalization size [mm] | 6 mm |
| Factory setting (FS) [°C] | 5 °C |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 12 mm |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Orifice capacities [kW] | 12 kW |
| Orifice capacities [TR] | 3.5 tons |
| Orifice size | 6 |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product description | Thermostatic Expans. Valve |
| Product family name | TGE |
| Product group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Quantity per packing format | 12 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
| Rated cap. cond. Range N [SI] | tcond=38 °C tevap=4.4 °C tliq=37 °C |
| Refrigerants | R134a |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TGE |
| Valve body temp. max. [°C] | 100 °C |
| Valve body temp. max. [°F] | 210 °F |
