Description

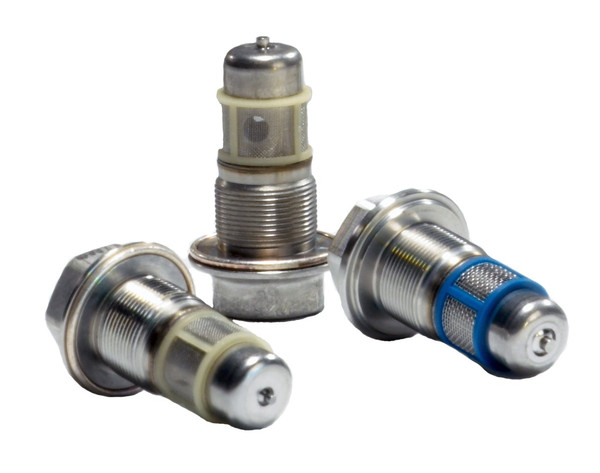

Product name: Orifice for expansion valve, Used for product: TCAE, Orifice size: 2, Bleed [%]: 15
Product details
| Gross weight | 0.05 kg |
| Net weight | 0.04 kg |
| EAN | 5702428051446 |
| Gross weight | 0.05 kg |
| Net weight | 0.04 kg |
| EAN | 5702428051446 |
| Approval | EAC LLC CDC TYSK |
| Bleed [%] | 15 % |
| Body material | Stainless steel |
| Category | Art. 4, par. 3 |
| Direction | Straightway |
| Fluid Group | I |
| Orifice size | 2 |
| Packing format | Multi pack |
| Parts Program name | TCA |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Product group | Expansion valves |
| Product name | Orifice for expansion valve |
| Quantity per packing format | 9 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Rated cap. R134a, Range N [kW] | 14.5 kW |
| Rated cap. R134a, Range N [TR] | 4.1 tons |
| Rated cap. R22, Range B [kW] | 7.8 kW |
| Rated cap. R22, Range B [TR] | 2.2 tons |
| Rated cap. R22, Range N [kW] | 21 kW |
| Rated cap. R22, Range N [TR] | 6 tons |
| Rated cap. R404A, Range N [kW] | 16 kW |
| Rated cap. R404A, Range N [TR] | 4.5 tons |
| Rated cap. R407C, Range N [kW] | 23 kW |
| Rated cap. R407C, Range N [TR] | 6.5 tons |
| Rated cap. R410A, Range N [kW] | 27.5 kW |
| Rated cap. R410A, Range N [TR] | 7.8 tons |
| Rated cap. R507, Range N [kW] | 16 kW |
| Rated cap. R507, Range N [TR] | 4.5 tons |
| Rated cap. R513A, Range N [kW] | 13.2 kW |
| Rated cap. R513A, Range N [TR] | 3.8 tons |
| Refrigerants | R22/R407C R23 R32 R404A/R507 R407C R407F R410A R508b R744 R134a/R513A R407A R448A R449A |
| Serviceable | No |
| Type | Orifice |
| Used for product | TCAE |
| Approval | EAC LLC CDC TYSK |
| Bleed [%] | 15 % |
| Body material | Stainless steel |
| Category | Art. 4, par. 3 |
| Direction | Straightway |
| Fluid Group | I |
| Orifice size | 2 |
| Packing format | Multi pack |
| Parts Program name | TCA |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Product group | Expansion valves |
| Product name | Orifice for expansion valve |
| Quantity per packing format | 9 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Rated cap. R134a, Range N [kW] | 14.5 kW |
| Rated cap. R134a, Range N [TR] | 4.1 tons |
| Rated cap. R22, Range B [kW] | 7.8 kW |
| Rated cap. R22, Range B [TR] | 2.2 tons |
| Rated cap. R22, Range N [kW] | 21 kW |
| Rated cap. R22, Range N [TR] | 6 tons |
| Rated cap. R404A, Range N [kW] | 16 kW |
| Rated cap. R404A, Range N [TR] | 4.5 tons |
| Rated cap. R407C, Range N [kW] | 23 kW |
| Rated cap. R407C, Range N [TR] | 6.5 tons |
| Rated cap. R410A, Range N [kW] | 27.5 kW |
| Rated cap. R410A, Range N [TR] | 7.8 tons |
| Rated cap. R507, Range N [kW] | 16 kW |
| Rated cap. R507, Range N [TR] | 4.5 tons |
| Rated cap. R513A, Range N [kW] | 13.2 kW |
| Rated cap. R513A, Range N [TR] | 3.8 tons |
| Refrigerants | R22/R407C R23 R32 R404A/R507 R407C R407F R410A R508b R744 R134a/R513A R407A R448A R449A |
| Serviceable | No |
| Type | Orifice |
| Used for product | TCAE |
