Description

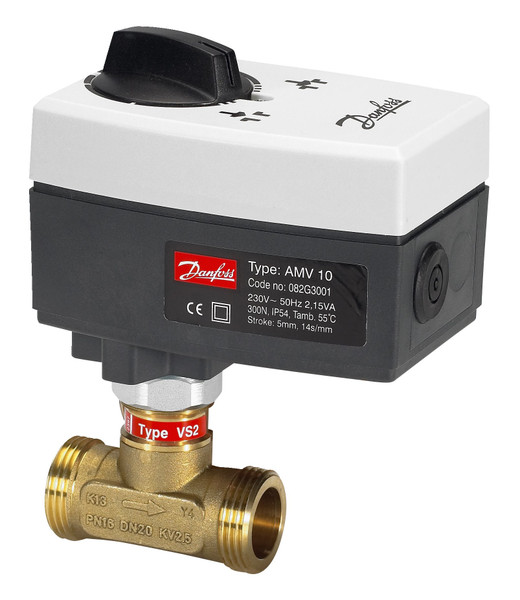

AMV 10 24V 14s/mm 5mm 300N
Product details
| Gross weight | 0.67 kg |
| Net weight | 0.63 kg |
| EAN | 5702421507483 |
| Gross weight | 0.67 kg |
| Net weight | 0.63 kg |
| EAN | 5702421507483 |
| Actuator speed [s/mm] | 14 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | District Heating |
| Closing force [N] | 300 N |
| Control signal type | 3-point |
| Description | AMV 10 24V 14s/mm 5mm 300N |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer's name | Danfoss |
| Position feedback | no - potentiometer needed |
| Power consumption [W] | 2 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 0 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AMV 10 |
| Actuator speed [s/mm] | 14 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | District Heating |
| Closing force [N] | 300 N |
| Control signal type | 3-point |
| Description | AMV 10 24V 14s/mm 5mm 300N |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer's name | Danfoss |
| Position feedback | no - potentiometer needed |
| Power consumption [W] | 2 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 0 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AMV 10 |
