Description

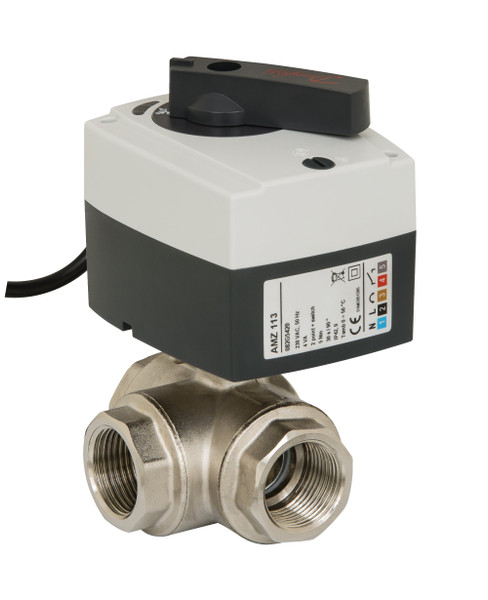

AMZ 113 ON/OFF 3-w int th 230V DN15
Product details
| Gross weight | 1.21 kg |
| Net weight | 1.16 kg |
| EAN | 5710104080048 |
| Gross weight | 1.21 kg |
| Net weight | 1.16 kg |
| EAN | 5710104080048 |
| Application | Domestic and commercial central heating |
| Application alternative VSP | Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] | 6 bar |
| Closing differential pressure (mixing) [bar] [Max] | 6 bar |
| Connection size | Rp 1/2 |
| Connection types | Internal thread |
| Description | AMZ 113 ON/OFF 3-w int th 230V DN15 |
| Diameter [mm] | 15 mm |
| Kvs values [m³/h] | 4.3 m3/h |
| Manufacturer's name | Danfoss |
| Media temperature [°C] [Max] | 110 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Drinking water |
| Medium alternative 2 | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 3 |
| Operating torque [Nm] | 5 N-m |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 40 bar |
| Product group | Motorized control valves |
| Spindle position | None |
| Type | AMZ 113 |
| Valve ball material | CW 614 N UNI EN 12164 |
| Valve body material | CW 617 N UNI EN 12165 |
| Valve stem material | CW 614 N UNI EN 12164 |
| Application | Domestic and commercial central heating |
| Application alternative VSP | Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] | 6 bar |
| Closing differential pressure (mixing) [bar] [Max] | 6 bar |
| Connection size | Rp 1/2 |
| Connection types | Internal thread |
| Description | AMZ 113 ON/OFF 3-w int th 230V DN15 |
| Diameter [mm] | 15 mm |
| Kvs values [m³/h] | 4.3 m3/h |
| Manufacturer's name | Danfoss |
| Media temperature [°C] [Max] | 110 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Drinking water |
| Medium alternative 2 | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 3 |
| Operating torque [Nm] | 5 N-m |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 40 bar |
| Product group | Motorized control valves |
| Spindle position | None |
| Type | AMZ 113 |
| Valve ball material | CW 614 N UNI EN 12164 |
| Valve body material | CW 617 N UNI EN 12165 |
| Valve stem material | CW 614 N UNI EN 12164 |
Product details
| Gross weight | 1.21 kg |
| Net weight | 1.16 kg |
| EAN | 5710104080048 |
| Gross weight | 1.21 kg |
| Net weight | 1.16 kg |
| EAN | 5710104080048 |
| Application | Domestic and commercial central heating |
| Application alternative VSP | Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] | 6 bar |
| Closing differential pressure (mixing) [bar] [Max] | 6 bar |
| Connection size | Rp 1/2 |
| Connection types | Internal thread |
| Description | AMZ 113 ON/OFF 3-w int th 230V DN15 |
| Diameter [mm] | 15 mm |
| Kvs values [m³/h] | 4.3 m3/h |
| Manufacturer's name | Danfoss |
| Media temperature [°C] [Max] | 110 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Drinking water |
| Medium alternative 2 | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 3 |
| Operating torque [Nm] | 5 N-m |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 40 bar |
| Product group | Motorized control valves |
| Spindle position | None |
| Type | AMZ 113 |
| Valve ball material | CW 614 N UNI EN 12164 |
| Valve body material | CW 617 N UNI EN 12165 |
| Valve stem material | CW 614 N UNI EN 12164 |
| Application | Domestic and commercial central heating |
| Application alternative VSP | Solar energy plants |
| Closing differential pressure (diverting) [bar] [Max] | 6 bar |
| Closing differential pressure (mixing) [bar] [Max] | 6 bar |
| Connection size | Rp 1/2 |
| Connection types | Internal thread |
| Description | AMZ 113 ON/OFF 3-w int th 230V DN15 |
| Diameter [mm] | 15 mm |
| Kvs values [m³/h] | 4.3 m3/h |
| Manufacturer's name | Danfoss |
| Media temperature [°C] [Max] | 110 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Drinking water |
| Medium alternative 2 | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 3 |
| Operating torque [Nm] | 5 N-m |
| Permissible media | Circulation water |
| Pressure nominal [bar] | 40 bar |
| Product group | Motorized control valves |
| Spindle position | None |
| Type | AMZ 113 |
| Valve ball material | CW 614 N UNI EN 12164 |
| Valve body material | CW 617 N UNI EN 12165 |
| Valve stem material | CW 614 N UNI EN 12164 |
