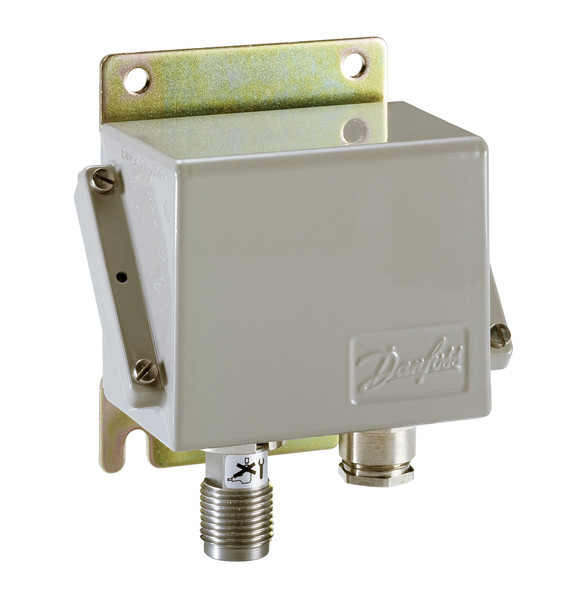

084G2111 Danfoss Pressure transmitter, EMP 2

Write a Review
SKU:
084G2111
Availability:
2 - 3 weeks
$1,016.49

Product details Gross weight 1.06 kg Net weight 0.97 kg EAN 5702423023349 Gross weight 1.06 kg Net weight 0.97 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 1.06 kg
Net weight 0.97 kg
EAN 5702423023349
Gross weight 1.06 kg
Net weight 0.97 kg
EAN 5702423023349



+ supply P
- common N
Accuracy, max. +/- FS [%] 0.5 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Approval ABS
BV
CCS
DNV
GL
GOST POCC
KR
LR
NNK
RINA
Compensated temp. range [°C] [Max] 70 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 158 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical connection Terminal block
Electrical connection size Pg 13.5
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 158 °F
Medium temperature range [°F] [Min] 14 °F
Non-linearity BFSL ±FS [%] 0.3 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Packing format Multi pack
Pressure connection notes Combi connection G1/4 female
Pressure connection size 1/2
Pressure connection standard EN 228-1
Pressure connection type G
Pressure Male/Female Male/Female
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key EMP 2-2211-F6CD24-2
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 11 V
Type EMP 2
+ supply P
- common N
Accuracy, max. +/- FS [%] 0.5 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Approval ABS
BV
CCS
DNV
GL
GOST POCC
KR
LR
NNK
RINA
Compensated temp. range [°C] [Max] 70 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 158 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical connection Terminal block
Electrical connection size Pg 13.5
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 158 °F
Medium temperature range [°F] [Min] 14 °F
Non-linearity BFSL ±FS [%] 0.3 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Packing format Multi pack
Pressure connection notes Combi connection G1/4 female
Pressure connection size 1/2
Pressure connection standard EN 228-1
Pressure connection type G
Pressure Male/Female Male/Female
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key EMP 2-2211-F6CD24-2
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 11 V
Type EMP 2
Product name: Pressure transmitter, Type: EMP 2, Pressure range [psi]: 0.00 - 232.06, Pressure range [bar]: 0.00 - 16.00, Pressure connection size: 1/2, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 13.5, Electrical connection: Terminal block

Product details

Gross weight 1.06 kg
Net weight 0.97 kg
EAN 5702423023349
Gross weight 1.06 kg
Net weight 0.97 kg
EAN 5702423023349



+ supply P
- common N
Accuracy, max. +/- FS [%] 0.5 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Approval ABS
BV
CCS
DNV
GL
GOST POCC
KR
LR
NNK
RINA
Compensated temp. range [°C] [Max] 70 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 158 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical connection Terminal block
Electrical connection size Pg 13.5
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 158 °F
Medium temperature range [°F] [Min] 14 °F
Non-linearity BFSL ±FS [%] 0.3 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Packing format Multi pack
Pressure connection notes Combi connection G1/4 female
Pressure connection size 1/2
Pressure connection standard EN 228-1
Pressure connection type G
Pressure Male/Female Male/Female
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key EMP 2-2211-F6CD24-2
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 11 V
Type EMP 2
+ supply P
- common N
Accuracy, max. +/- FS [%] 0.5 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Approval ABS
BV
CCS
DNV
GL
GOST POCC
KR
LR
NNK
RINA
Compensated temp. range [°C] [Max] 70 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 158 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical connection Terminal block
Electrical connection size Pg 13.5
Enclosure rating IP IP67
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 158 °F
Medium temperature range [°F] [Min] 14 °F
Non-linearity BFSL ±FS [%] 0.3 %
Output signal Current
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 32 bar
Packing format Multi pack
Pressure connection notes Combi connection G1/4 female
Pressure connection size 1/2
Pressure connection standard EN 228-1
Pressure connection type G
Pressure Male/Female Male/Female
Pressure range [bar] [Max] 16 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 232.06 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber No
Quantity per packing format 8 pc
Response time max. [ms] 4 ms
Specification key EMP 2-2211-F6CD24-2
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 11 V
Type EMP 2
×
