Description

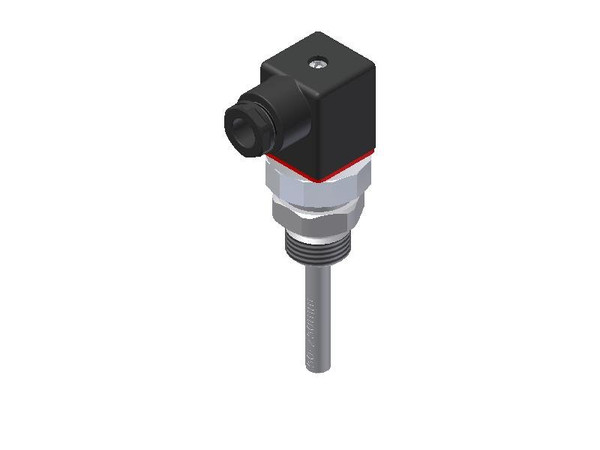

Process Connections: G1/2 , ISO 228-1-A, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 200, Insertion length [mm]: 150, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Plug, Electrical connection size: Pg 9
Product details
| Gross weight | 0.17 kg |
| Net weight | 0.17 kg |
| EAN | 5702428977524 |
| Gross weight | 0.17 kg |
| Net weight | 0.17 kg |
| EAN | 5702428977524 |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Insertion length [in] | 5.91 in |
| Insertion length [mm] | 150 mm |
| Insertion type | Fixed |
| Number of terminals [pcs] | 3 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connections | G1/2 , ISO 228-1-A |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 12 pc |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 3250 |
| Type designation | MBT 3250-0000-150-120 |
| Wires [pcs] | 2 pc |
