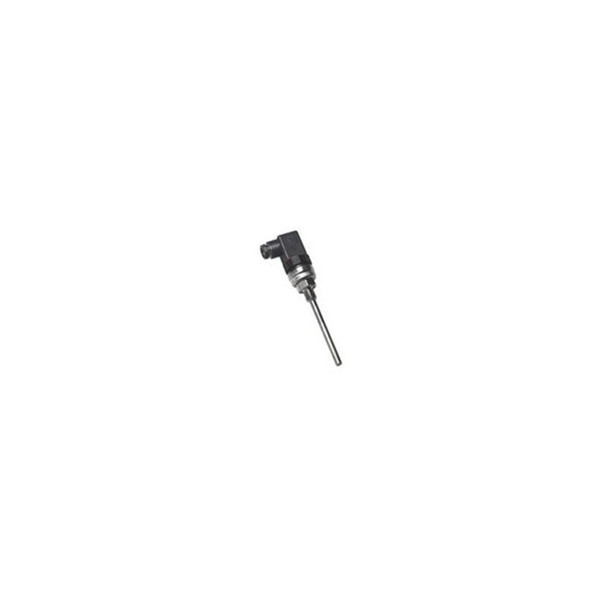

Type Code MBT 3560 , Weight 0.182 Kg , Ambient temp. max. 85 °C , Ambient temp. max. 185 °F , Conn. std. ISO 228 More detailsWith MBT 3560 we have combined the technology of our standard temperature sensors and the electrical connections from the MBS pressure transmitters with a new developed electronics which has resulted in a compact temperature sensor with a built-in transmitter.The MBT 3560 is designed for use in harsh industrial enviroments where reliable, robust and accurate equipment is required. Available with a wide selection of process and electrical connections. Can be delivered with a 33 mm extension length which makes it possible to measure temperatures up to 200°C without damaging the built-in electronics. Ultra compact design Acid-resistant stainless steel enclosure (AISI 316L) Temperature range -50 °C - +200°C Pt 1000 resistance element Output signals: 4 - 20 mA or Ratiometric Protection tube: ø 8 mm Multiple insertion lengths: 50 mm- 250 mm
| Type Code | MBT 3560 |
| Weight | 0.182 Kg |
| Ambient temp. max. | 85 °C |
| Ambient temp. max. | 185 °F |
| Conn. std. | ISO 228 |
| Conn. type | G |
| EAN no. | 5702423227143 |
| Electr. conn. Male/Female | Male |
| Electr. conn. | M12 x 1 |
| Electr. conn. size | 4 pin |
| Electr. conn. std. | EN 60947-5-2 |
| Encl. | IP67 |
| Ext. length | 1,30 in |
| Ext. length | 33 mm |
| Insert length | 3,94 in |
| Insert length | 100 mm |
| Output sign. | 4 - 20 mA |
| Process conn. Male/Female | Male |
| Process conn. mat. | Stainless steel |
| Process conn. size | 1/2 |
| Process conn. std. | ISO 228-1-A |
| Process conn. type | G |
| Prot. tube diam. (ø) | 0,31 in |
| Prot. tube diam. (ø) | 8,0 mm |
| Prot. tube mat. | AISI 316 Ti |
| Sensor element tol. | < ± 1% FS |
| Sensor Insert | fixed |
| Supply volt. | 10,00 - 32,00 V |
| Temp. range | -50 - 120 °C |
| Temp. range | -58 - 248 °F |
| Transm. setting range | -50 - 200 °C |
| Transm. setting range | -58 - 392 °F |
| Transm. type | Integrated |
| Type designation | MBT 3560-0001-0100-62-420 |
