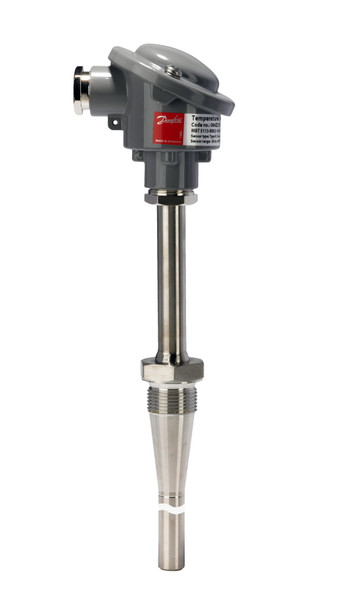

084Z5278 Danfoss Temperature sensor, MBT 5113

Write a Review
SKU:
084Z5278
Availability:
2 - 3 weeks
435.38€

Product details Gross weight 0.97 kg Net weight 0.94 kg EAN 5702423164431 Gross weight 0.97 kg Net weight 0.94 kg…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 0.97 kg
Net weight 0.94 kg
EAN 5702423164431
Gross weight 0.97 kg
Net weight 0.94 kg
EAN 5702423164431



Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 3.94 in
Extension length [mm] 100 mm
Insertion length [in] 9.84 in
Insertion length [mm] 250 mm
Insertion type Fixed
Number of terminals [pcs] 2 pc
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G3/4 , ISO 228-1-A
Product Group MULTI BLOCK
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] [Max] 0.95 in
Protection tube diameter [in] [Min] 0.55 in
Protection tube diameter [mm] [Max] 24 mm
Protection tube diameter [mm] [Min] 14 mm
Protection tube material AISI 316 Ti
Quantity per packing format 10 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Exchangeable
Supply voltage [V] DC [Max] 35 V
Supply voltage [V] DC [Min] 8 V
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Transmitter setting range [°C] [Max] 600 °C
Transmitter setting range [°C] [Min] 0 °C
Transmitter setting range [°F] [Max] 1112 °F
Transmitter setting range [°F] [Min] 32 °F
Transmitter type Galv. isolated
Type MBT 5113
Type designation MBT 5113-B002-250-10-H160
Wires [pcs] 2 pc
Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material AISI 316 Ti
Connection standard ISO 228
Connection type G
Electrical connection Type B
Electrical connection size Pg 16
Enclosure rating IP IP65
Extension length [in] 3.94 in
Extension length [mm] 100 mm
Insertion length [in] 9.84 in
Insertion length [mm] 250 mm
Insertion type Fixed
Number of terminals [pcs] 2 pc
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection Male/Female Male
Process connection material AISI 316 Ti
Process Connections G3/4 , ISO 228-1-A
Product Group MULTI BLOCK
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] [Max] 0.95 in
Protection tube diameter [in] [Min] 0.55 in
Protection tube diameter [mm] [Max] 24 mm
Protection tube diameter [mm] [Min] 14 mm
Protection tube material AISI 316 Ti
Quantity per packing format 10 pc
Sensor element standard EN 60584-2
Sensor element tolerance Class 2
Sensor Insert Exchangeable
Supply voltage [V] DC [Max] 35 V
Supply voltage [V] DC [Min] 8 V
Temperature range [°C] [Max] 800 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 1472 °F
Temperature range [°F] [Min] -58 °F
Thermocouple 1 x NiCr-Ni, Type K
Thermocouple design std. EN 61515
Thermocouple tolerance EN 60584-2 Class 2
Transmitter setting range [°C] [Max] 600 °C
Transmitter setting range [°C] [Min] 0 °C
Transmitter setting range [°F] [Max] 1112 °F
Transmitter setting range [°F] [Min] 32 °F
Transmitter type Galv. isolated
Type MBT 5113
Type designation MBT 5113-B002-250-10-H160
Wires [pcs] 2 pc
Process Connections: G3/4 , ISO 228-1-A, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 800, Insertion length [mm]: 250, Output signal [mA] [Min]: 4, Output signal [mA] [Max]: 20, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: Pg 16
