Description

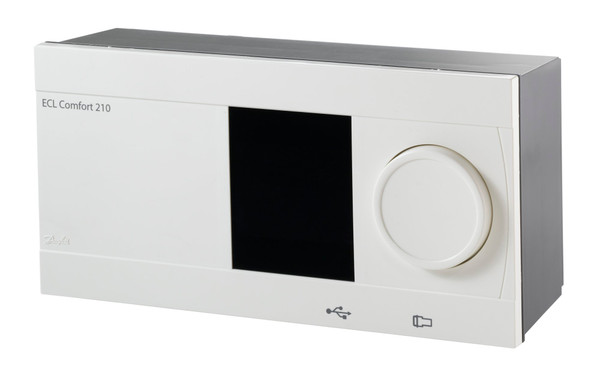

ECL COMFORT 210/230 V
Product details
| Gross weight | 0.63 kg |
| Net weight | 0.44 kg |
| EAN | 5710104013206 |
| Gross weight | 0.63 kg |
| Net weight | 0.44 kg |
| EAN | 5710104013206 |
| Actuator output load [VA] | 15 VA |
| Ambient humidity [% RH] [Max] | 65 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application source | By ECL application key |
| Approval standard | CE marking EMC-Directive: 2004/108/EC Immunity: EN 61000-6-1:2007 Emission: EN 61000-6-3:2007 LVD directive 2006/95/EC EN 60730 |
| Communications | ECL 485 Bus (non-galvanically isolated) Modbus (non-galvanically isolated) |
| Description | ECL COMFORT 210/230 V |
| DHW functions | Anti-bacteria program Auto-tunning Return temperature influence |
| Digital inputs type | 12 V pull-up possible |
| Display type | LCD dot matrix |
| General functions | Alarm functions Circulation pump exercise Control valve exercise External override facility Frost protection Holiday program Master - Slave network Motor protection Remote control connection Visible temperature logging |
| Grade of enclosure | IP41 |
| Heat curve setting for heating circuit | 6 points Slope |
| Manufacturer's name | Danfoss |
| Number of 3-point motor control outputs | 2 |
| Number of comfort periods per day | 3 |
| Number of DHW circuits | 1 |
| Number of DHW storage tank circuits | 1 |
| Number of digital inputs | 2 |
| Number of heating circuits | 2 |
| Number of pumps | 4 |
| Number of relay outputs | 4 |
| Number of Sensor inputs | 8 pc |
| Power consumption [W] | 5 W |
| Product group | Electronic controllers |
| Relay output inductive load [A] | 2 A |
| Relay output ohmic load [A] | 4 A |
| Relay output voltage [V] AC | 230 V |
| Sensor cable length [mm] | 200 mm |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage frequency [Hz] | 50 Hz |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 244 V |
| Supply voltage range [V] AC [Min] | 207 V |
| Temperature sensors type | Pt 1000, configurable input |
| Time switch power backup [h] | 72 h |
| Time switch type | Week |
| Type | ECL Comfort 210 |
| User input type | Display Push-turn dial |
| Actuator output load [VA] | 15 VA |
| Ambient humidity [% RH] [Max] | 65 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application source | By ECL application key |
| Approval standard | CE marking EMC-Directive: 2004/108/EC Immunity: EN 61000-6-1:2007 Emission: EN 61000-6-3:2007 LVD directive 2006/95/EC EN 60730 |
| Communications | ECL 485 Bus (non-galvanically isolated) Modbus (non-galvanically isolated) |
| Description | ECL COMFORT 210/230 V |
| DHW functions | Anti-bacteria program Auto-tunning Return temperature influence |
| Digital inputs type | 12 V pull-up possible |
| Display type | LCD dot matrix |
| General functions | Alarm functions Circulation pump exercise Control valve exercise External override facility Frost protection Holiday program Master - Slave network Motor protection Remote control connection Visible temperature logging |
| Grade of enclosure | IP41 |
| Heat curve setting for heating circuit | 6 points Slope |
| Manufacturer's name | Danfoss |
| Number of 3-point motor control outputs | 2 |
| Number of comfort periods per day | 3 |
| Number of DHW circuits | 1 |
| Number of DHW storage tank circuits | 1 |
| Number of digital inputs | 2 |
| Number of heating circuits | 2 |
| Number of pumps | 4 |
| Number of relay outputs | 4 |
| Number of Sensor inputs | 8 pc |
| Power consumption [W] | 5 W |
| Product group | Electronic controllers |
| Relay output inductive load [A] | 2 A |
| Relay output ohmic load [A] | 4 A |
| Relay output voltage [V] AC | 230 V |
| Sensor cable length [mm] | 200 mm |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage frequency [Hz] | 50 Hz |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 244 V |
| Supply voltage range [V] AC [Min] | 207 V |
| Temperature sensors type | Pt 1000, configurable input |
| Time switch power backup [h] | 72 h |
| Time switch type | Week |
| Type | ECL Comfort 210 |
| User input type | Display Push-turn dial |
