Description

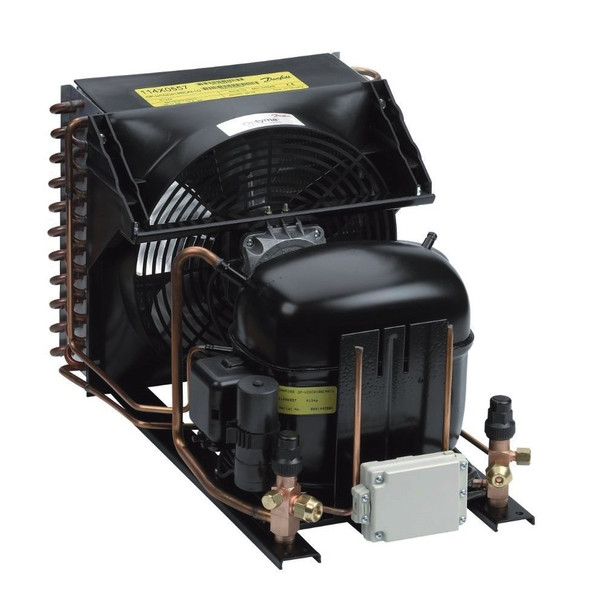

Type designation: Condensing Units, Type: Optyma™, Model number: OP-MCHC015, Refrigerant: R404A; R507, Segment usage: Medium Back Pressure, No. of phases (compressor): 1
Product details
| Gross weight | 33 kg |
| Net weight | 32.5 kg |
| EAN | 5702428565233 |
| Gross weight | 33 kg |
| Net weight | 32.5 kg |
| EAN | 5702428565233 |
| Air flow @ 50Hz [m³/h] | 1300 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | SC15MLX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_6 |
| Description | OP-MCHC015SCA01G |
| Electrical code | G |
| Fan blade size [mm] | 300 mm |
| Fan current @ 50Hz [A] | 0.48 A |
| Fan current @ 60Hz [A] | 0.42 A |
| Fan power consumption @ 50Hz [W] | 70 W |
| Fan power consumption @ 60Hz [W] | 62 W |
| Fan power output @ 50Hz [W] | 18 W |
| Fan power output @ 60Hz [W] | 18 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCHC015 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R404A R507 |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 68 dBA |
| Suction connection size [mm] | 10 mm |
| Technology | Reciprocating |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A01 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Air flow @ 50Hz [m³/h] | 1300 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | SC15MLX |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | BG_6 |
| Description | OP-MCHC015SCA01G |
| Electrical code | G |
| Fan blade size [mm] | 300 mm |
| Fan current @ 50Hz [A] | 0.48 A |
| Fan current @ 60Hz [A] | 0.42 A |
| Fan power consumption @ 50Hz [W] | 70 W |
| Fan power consumption @ 60Hz [W] | 62 W |
| Fan power output @ 50Hz [W] | 18 W |
| Fan power output @ 60Hz [W] | 18 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 V |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 V |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 V |
| Liquid line connection [mm] | 6 mm |
| Model number | OP-MCHC015 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | UL |
| Refrigerant | R404A R507 |
| Region | Africa Asia Europe Middle East Pacific |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 68 dBA |
| Suction connection size [mm] | 10 mm |
| Technology | Reciprocating |
| Type | Optyma™ |
| Type designation | Condensing Units |
| Version | A01 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
