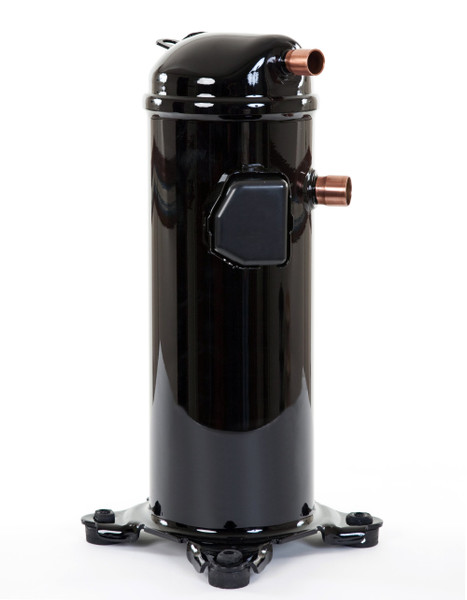

120U1256 Danfoss Scroll compressor, HRH032U2LP6

Write a Review
SKU:
120U1256
Availability:
2 - 3 weeks
1,714.75€

Product details Gross weight 34.33 kg Net weight 30.33 kg EAN 5702428205894 Gross weight 34.33 kg Net weight 30.3…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 34.33 kg
Net weight 30.33 kg
EAN 5702428205894
Gross weight 34.33 kg
Net weight 30.33 kg
EAN 5702428205894



Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 200-220/3/50 208-230/3/60
Configuration code Single
Connection type Brazed
Description HRH032U2
Diameter [mm] 165 mm
Discharge connection height [mm] 379 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XC6301B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High side max pressure (Ps) 46.1 bar
High value of nominal voltage at 50Hz [V] 220 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 242 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Length [mm] 239 mm
Low side max pressure (Ps) 31.1 bar
Low value of nominal voltage at 50Hz [V] 200 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 180 V
Low value of voltage range at 60Hz [V] 187 V
LRA 95 A
MCC 20 A
Model number HRH032U2LP6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 32.08 kBtu/h
Nominal cooling capacity at 50Hz 6.8 kW
Nominal cooling capacity at 60Hz 9.4 kW
Nominal heating capacity at 50Hz 4.3 kW
Oil charge [L] 1.06 L
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 16
Phase 3
Power connections Spade
Refrigerant R410A
Refrigerant charge [kg] [Max] 3.63 kg
Relief valve Yes
RLA 12.8 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 250 mm
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 30.64 cm3
Technology Scroll
Total height [mm] 413 mm
Type HRH
Type designation Compressor
Viscosity [cP] 68 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 1.18 Ohm
Winding resistance 1-3 [Ohm] 0.87 Ohm
Winding resistance 2-3 [Ohm] 1.18 Ohm
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 200-220/3/50 208-230/3/60
Configuration code Single
Connection type Brazed
Description HRH032U2
Diameter [mm] 165 mm
Discharge connection height [mm] 379 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XC6301B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High side max pressure (Ps) 46.1 bar
High value of nominal voltage at 50Hz [V] 220 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 242 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Length [mm] 239 mm
Low side max pressure (Ps) 31.1 bar
Low value of nominal voltage at 50Hz [V] 200 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 180 V
Low value of voltage range at 60Hz [V] 187 V
LRA 95 A
MCC 20 A
Model number HRH032U2LP6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 32.08 kBtu/h
Nominal cooling capacity at 50Hz 6.8 kW
Nominal cooling capacity at 60Hz 9.4 kW
Nominal heating capacity at 50Hz 4.3 kW
Oil charge [L] 1.06 L
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 16
Phase 3
Power connections Spade
Refrigerant R410A
Refrigerant charge [kg] [Max] 3.63 kg
Relief valve Yes
RLA 12.8 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 250 mm
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 30.64 cm3
Technology Scroll
Total height [mm] 413 mm
Type HRH
Type designation Compressor
Viscosity [cP] 68 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 1.18 Ohm
Winding resistance 1-3 [Ohm] 0.87 Ohm
Winding resistance 2-3 [Ohm] 1.18 Ohm
Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 200-220/3/50 208-230/3/60
