Description
VLT AQUA Drive FC-202 110 KW / 150 HP, 380 - 480 VAC,IP54 / Type 12, RFI class A1 (C2),No brake chopper FC-202N110T4E54H4XGCJXXSXXXXANBXCX5XXDX
Product Details‚ 134L0030

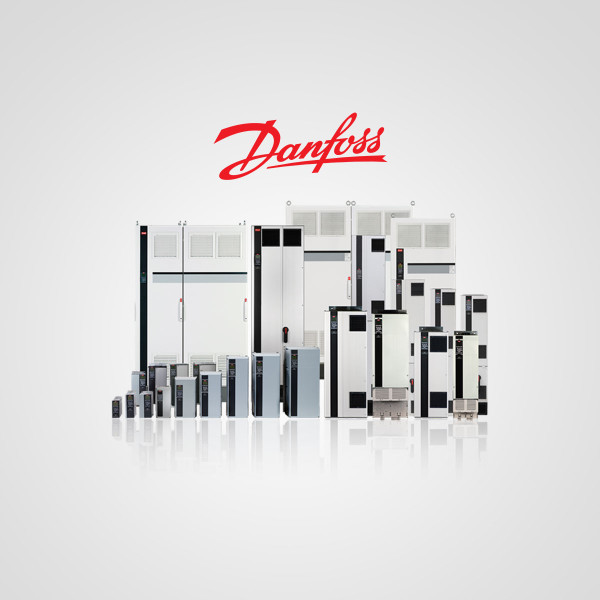

VLT AQUA Drive FC-202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (N110) 110 KW / 150 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E54) IP54 / Tipo 12 |
| RFI Filter | (H4) RFI class A1 (C2) |
| Brake - Safe Stop | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (C) Coated PCB |
| Mains Option | (J) Circuit Breaker + Fuse |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AN) EtherNet/IP MCA 121 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (5) MCO-102 Ad Cascade Control |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | D6H |
| Tipocode Part 1 | FC-202N110T4E54H4XGC |
| Tipocode Part 2 | JXXSXXXXANBXCX5XXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory US |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 129.300 |
| Calculated Net Weight [kg] | 129.000 |
