Description

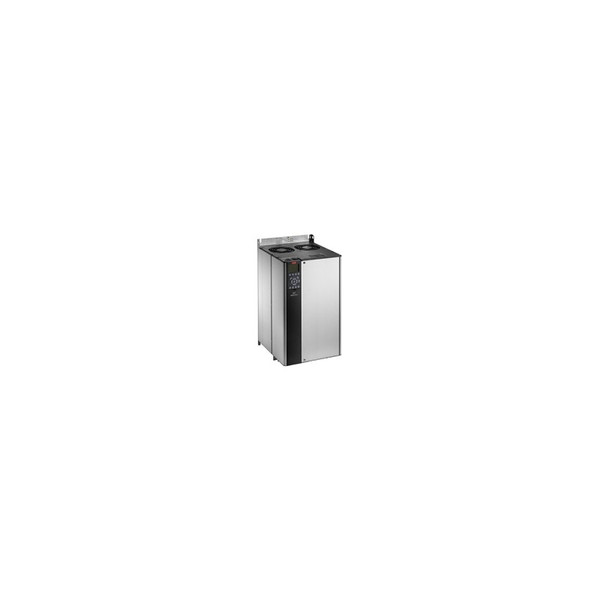

VLT AQUA Drive FC-202 45 KW / 60 HP, 380 - 480 VAC,IP20 / Chassis, RFI Class A2 (C3),Safe Stop FC-202P45KT4E20H2TNXXXXSXXXXAXB2CXRXXDX
Product Details‚ 135N1132
VLT AQUA Drive FC-202
Danfoss VLT AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful standard and optional features, the VLT AQUA Drive provides the lowest overall cost of ownership for water and wastewater applications.
| Characteristic | Value |
|---|---|
| Product Group | (FC-) VLT AQUA Drive FC- |
| Series | 202 |
| Power Rating | (P45K) 45 KW / 60 HP |
| Phase | (T) Three phase |
| Mains Voltage | (4) 380 - 480 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (T) Safe Stop |
| LCP | (N) Numerical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AX) No A Option |
| B Option | (B2) MCB-112 PTC Therm. Card |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (R) MCB-113 Ext. Relay Card |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | C3 |
| Tipocode Part 1 | FC-202P45KT4E20H2TNX |
| Tipocode Part 2 | XXXSXXXXAXB2CXRXXDX |
| Product Catalog | Global (Standard) |
| Vendor | Factory DK |
| Vendor Region | Southern Europe |
| Calculated Gross Weight | 35.300 |
| Calculated Net Weight [kg] | 35.000 |
