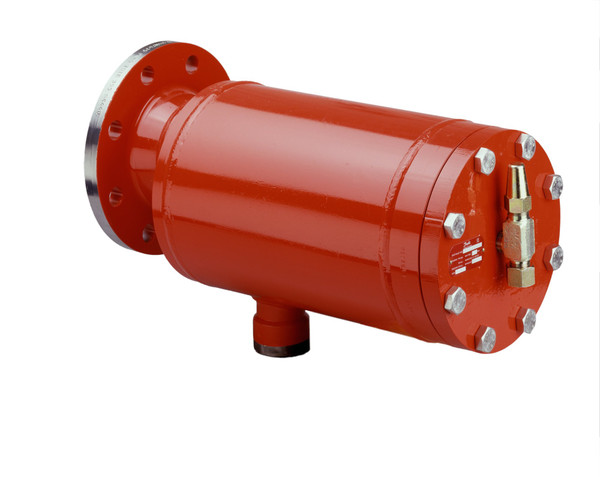

Description
Inlet connection size [mm]: 150.0, Inlet connection type: Butt weld, Outlet connection size [mm]: 50.0, Outlet connection type: Butt weld, Max. Working Pressure [bar]: 25.0
Product details
| Gross weight | 37 kg |
| Net weight | 37 kg |
| EAN | 5702428345378 |
| Gross weight | 37 kg |
| Net weight | 37 kg |
| EAN | 5702428345378 |
| Body material | Steel |
| Category | III |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Fluid Group | I |
| Inlet connection size [in] | 6 in |
| Inlet connection size [mm] | 150 mm |
| Inlet connection type | Butt weld |
| Liquid volume range [gal US] [Max] | 1.22 gal |
| Liquid volume range [l] [Max] | 4.6 L |
| Liquid volume range [l] [Min] | 1.6 L |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 363 psig |
| Net volume [l] | 6.4 L |
| Netto volume [gal US] | 1.69 gal |
| Nozzle size [mm] | 70 mm |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product accessories | Float exp. valve accessories |
| Product description | Float Valve |
| Product group | Liquid level regulating valves |
| Product name | Float valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | R717: Temp. 14 - 95 °F |
| Rated cap. conditions [SI] | R717: Temp. -10 - 35 °C |
| Rated capacity R717 [kW] | 2400 kW |
| Rated capacity R717 [TR] | 682 tons |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Serviceable | Float exp. valve spare parts |
| Shell volume [gal US] | 2.17 gal |
| Shell volume [l] | 8.2 L |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 176 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | HFI 070 |
| Valve constant | 100 |
| Body material | Steel |
| Category | III |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Fluid Group | I |
| Inlet connection size [in] | 6 in |
| Inlet connection size [mm] | 150 mm |
| Inlet connection type | Butt weld |
| Liquid volume range [gal US] [Max] | 1.22 gal |
| Liquid volume range [l] [Max] | 4.6 L |
| Liquid volume range [l] [Min] | 1.6 L |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 363 psig |
| Net volume [l] | 6.4 L |
| Netto volume [gal US] | 1.69 gal |
| Nozzle size [mm] | 70 mm |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product accessories | Float exp. valve accessories |
| Product description | Float Valve |
| Product group | Liquid level regulating valves |
| Product name | Float valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | R717: Temp. 14 - 95 °F |
| Rated cap. conditions [SI] | R717: Temp. -10 - 35 °C |
| Rated capacity R717 [kW] | 2400 kW |
| Rated capacity R717 [TR] | 682 tons |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Serviceable | Float exp. valve spare parts |
| Shell volume [gal US] | 2.17 gal |
| Shell volume [l] | 8.2 L |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 176 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | HFI 070 |
| Valve constant | 100 |
