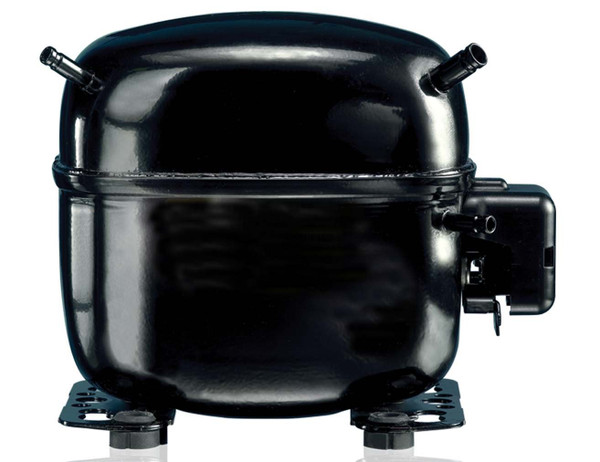

195B0142 Danfoss Reciprocating compressor, SC10GH

Write a Review
SKU:
195B0142
Availability:
2 - 3 weeks
541.50€

Product details Gross weight 13.72 kg Net weight 13.72 kg EAN 5702428583626 Gross weight 13.72 kg Net weight 13.7…

Adding to cart… The item has been added
Ask for a Quotation

Ask for a Quotation

Feel free to inquire
Request a Quote
  • Security Image 1
Description

Product details

Gross weight 13.72 kg
Net weight 13.72 kg
EAN 5702428583626
Gross weight 13.72 kg
Net weight 13.72 kg
EAN 5702428583626



Application energy level Standard HBP
Applications HBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 13.5 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 16.2 A
Cut in current LST [A] 20.1 A
Description SC10GH
Discharge connection angle [°] 37 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 8.2 mm
Discharge connection height [mm] 100 mm
Discharge connection material Copper
Economizer No
Free gas volume [cm3] 1510 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 203 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 255 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 16.2 A
LRA HST [A] 16.2 A
LRA LST [A] 15.8 A
Main winding resistance for single-phase compressors [Ohm] 5.1 Ohm
Model number SC10GH
Motor type CSIR
No. of phases (compressor) 1
Nominal cooling capacity 60 kBTU/h 3.43 kBtu/h
Nominal cooling capacity at 60Hz 1 kW
Oil quantity [cm3] 500 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 37 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.2 mm
Process connection height [mm] 183 mm
Process connection material Copper
Refrigerant R134a
Refrigerant charge [kg] [Max] 1.3 kg
RLA 3.10 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration MT
Refrigeration HT
Start capacitor capacitance 80 µF
Suction connection angle [°] 37 °
Suction connection comments Rubber plug
Suction connection diameter [mm] 10.2 mm
Suction connection height [mm] 183 mm
Suction connection material Copper
Swept volume [cm3] 10.29 cm3
Technology Reciprocating
Total height [mm] 209 mm
Type SC
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 151 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Application energy level Standard HBP
Applications HBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 13.5 Ohm
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 16.2 A
Cut in current LST [A] 20.1 A
Description SC10GH
Discharge connection angle [°] 37 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 8.2 mm
Discharge connection height [mm] 100 mm
Discharge connection material Copper
Economizer No
Free gas volume [cm3] 1510 cm3
Frequency [Hz] 50/60
Height from baseplate [mm] 203 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of nominal voltage at 60Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
High value of voltage range at 60Hz [V] 255 V
Length [mm] 255 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
Low value of voltage range at 60Hz [V] 187 V
LRA HST 60Hz [A] 16.2 A
LRA HST [A] 16.2 A
LRA LST [A] 15.8 A
Main winding resistance for single-phase compressors [Ohm] 5.1 Ohm
Model number SC10GH
Motor type CSIR
No. of phases (compressor) 1
Nominal cooling capacity 60 kBTU/h 3.43 kBtu/h
Nominal cooling capacity at 60Hz 1 kW
Oil quantity [cm3] 500 cm3
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 37 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.2 mm
Process connection height [mm] 183 mm
Process connection material Copper
Refrigerant R134a
Refrigerant charge [kg] [Max] 1.3 kg
RLA 3.10 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration MT
Refrigeration HT
Start capacitor capacitance 80 µF
Suction connection angle [°] 37 °
Suction connection comments Rubber plug
Suction connection diameter [mm] 10.2 mm
Suction connection height [mm] 183 mm
Suction connection material Copper
Swept volume [cm3] 10.29 cm3
Technology Reciprocating
Total height [mm] 209 mm
Type SC
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 151 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Refrigerant: R134a, Segment usage: Refrigeration HT;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 220/1/50 220/1/60
