Description

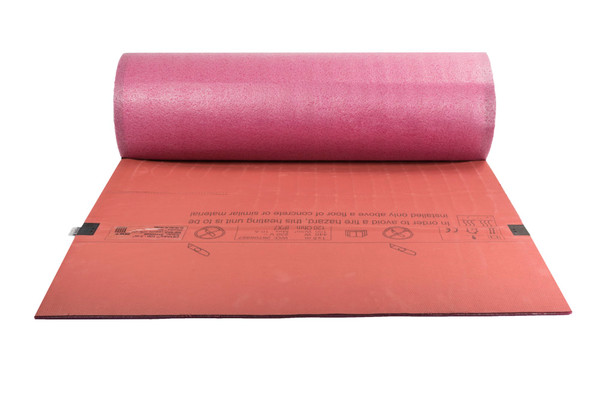

DEVIdry 100 1m² 40W 230V
Product details
| Gross weight | 2 kg |
| Net weight | 1.98 kg |
| EAN | 5703466177860 |
| Gross weight | 2 kg |
| Net weight | 1.98 kg |
| EAN | 5703466177860 |
| Cable resistance [Ohm] | 1323 Ohm |
| Cable type | Single conductor |
| Certification company | Intertek Semko |
| Cold lead | No |
| Coverage area [m²] | 1 m2 |
| Current [A] [Max] | 10 A |
| Cut to length | No |
| Description | DEVIdry 100 1m² 40W 230V |
| Element IP Class | IPX7 |
| Heating output [W] | 40 W |
| Heating principle | Serial resistive |
| Installation height [mm] [Min] | 8 mm |
| Insulation material | PP-Foam |
| Mat length [m] | 1 m |
| Mat output [W/m²] | 100 W/m2 |
| Package depth [mm] | 1050 mm |
| Package height [mm] | 180 mm |
| Package width [mm] | 180 mm |
| Product group | Heating Mats |
| Product name | DEVIdry™ 100 |
| Sound reduction [dB] | 17 dB |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Thermal resistance [W/m²K] | 8 W/m2-K |
| Thickness [mm] | 8 mm |
| Type | DEVIdry™ |
| Warranty [Year] | 5 |
| Cable resistance [Ohm] | 1323 Ohm |
| Cable type | Single conductor |
| Certification company | Intertek Semko |
| Cold lead | No |
| Coverage area [m²] | 1 m2 |
| Current [A] [Max] | 10 A |
| Cut to length | No |
| Description | DEVIdry 100 1m² 40W 230V |
| Element IP Class | IPX7 |
| Heating output [W] | 40 W |
| Heating principle | Serial resistive |
| Installation height [mm] [Min] | 8 mm |
| Insulation material | PP-Foam |
| Mat length [m] | 1 m |
| Mat output [W/m²] | 100 W/m2 |
| Package depth [mm] | 1050 mm |
| Package height [mm] | 180 mm |
| Package width [mm] | 180 mm |
| Product group | Heating Mats |
| Product name | DEVIdry™ 100 |
| Sound reduction [dB] | 17 dB |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Thermal resistance [W/m²K] | 8 W/m2-K |
| Thickness [mm] | 8 mm |
| Type | DEVIdry™ |
| Warranty [Year] | 5 |
Product details
| Gross weight | 2 kg |
| Net weight | 1.98 kg |
| EAN | 5703466177860 |
| Gross weight | 2 kg |
| Net weight | 1.98 kg |
| EAN | 5703466177860 |
| Cable resistance [Ohm] | 1323 Ohm |
| Cable type | Single conductor |
| Certification company | Intertek Semko |
| Cold lead | No |
| Coverage area [m²] | 1 m2 |
| Current [A] [Max] | 10 A |
| Cut to length | No |
| Description | DEVIdry 100 1m² 40W 230V |
| Element IP Class | IPX7 |
| Heating output [W] | 40 W |
| Heating principle | Serial resistive |
| Installation height [mm] [Min] | 8 mm |
| Insulation material | PP-Foam |
| Mat length [m] | 1 m |
| Mat output [W/m²] | 100 W/m2 |
| Package depth [mm] | 1050 mm |
| Package height [mm] | 180 mm |
| Package width [mm] | 180 mm |
| Product group | Heating Mats |
| Product name | DEVIdry™ 100 |
| Sound reduction [dB] | 17 dB |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Thermal resistance [W/m²K] | 8 W/m2-K |
| Thickness [mm] | 8 mm |
| Type | DEVIdry™ |
| Warranty [Year] | 5 |
| Cable resistance [Ohm] | 1323 Ohm |
| Cable type | Single conductor |
| Certification company | Intertek Semko |
| Cold lead | No |
| Coverage area [m²] | 1 m2 |
| Current [A] [Max] | 10 A |
| Cut to length | No |
| Description | DEVIdry 100 1m² 40W 230V |
| Element IP Class | IPX7 |
| Heating output [W] | 40 W |
| Heating principle | Serial resistive |
| Installation height [mm] [Min] | 8 mm |
| Insulation material | PP-Foam |
| Mat length [m] | 1 m |
| Mat output [W/m²] | 100 W/m2 |
| Package depth [mm] | 1050 mm |
| Package height [mm] | 180 mm |
| Package width [mm] | 180 mm |
| Product group | Heating Mats |
| Product name | DEVIdry™ 100 |
| Sound reduction [dB] | 17 dB |
| Supply voltage range [V] AC | 230 V |
| Supply voltage range [V] AC [Max] | 240 V |
| Supply voltage range [V] AC [Min] | 220 V |
| Thermal resistance [W/m²K] | 8 W/m2-K |
| Thickness [mm] | 8 mm |
| Type | DEVIdry™ |
| Warranty [Year] | 5 |
