Description

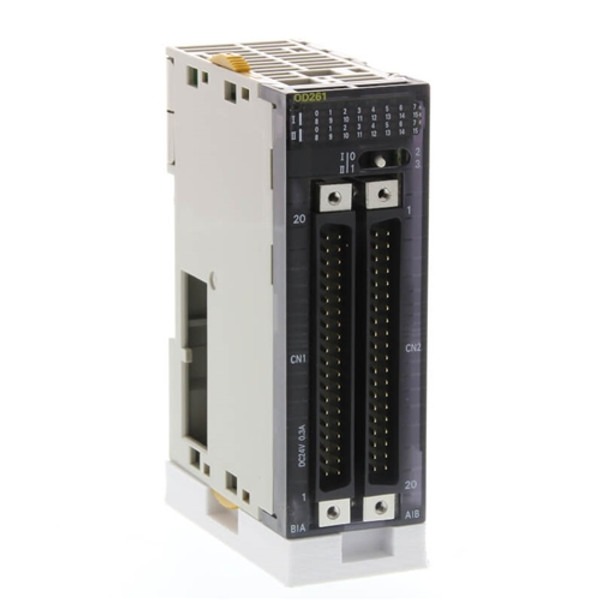

CJ1WOD261 OMRON Output unit,64x transistor outputs, NPN, 0.5A, 12 to 24 VDC, Fujitsu conne ctor NOT included
CJ1WOD261
CJ1W-OD261
| Output Type: | Sinking |
| I/O Points: | 64 outputs |
| Maximum Switching Capacity: | 12 to 24 VDC, 0.3 A |
| Commons: | 16 points, 1 common |
| External Connection: | Fujitsu connector |
| No. Of Words Allocated: | 4 words |
| Current Consumption (A): | 5 V = 0.17 |
| Height (mm): | 90 |
| Width (mm): | 20 |
| Depth (mm): | 66.5 |
| Weight (kg): | 0.145 |
