Description

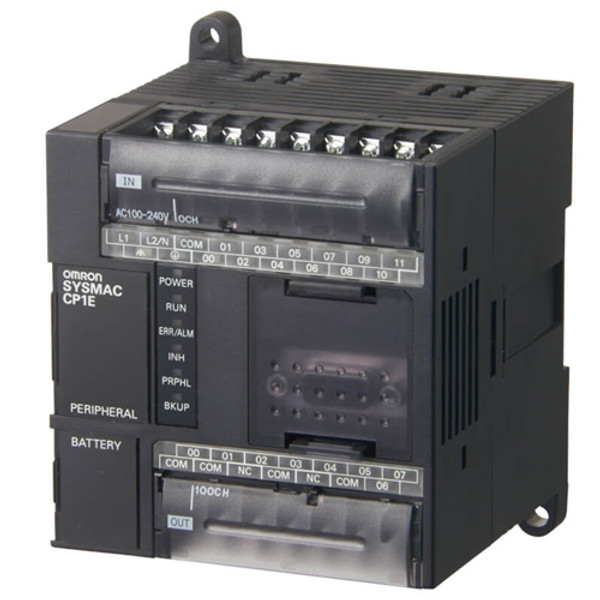

CP1EN20DT1D OMRON CP1E-N CPU, 24VDC SUPPLY, 12X24VDC INPUTS, 8XPNP TRANSISTOR OUTPUTS, 8K STEPS PROGRAM MEMORY, 8K WORDS DATA MEM ORY, BUILTIN RS232 PORT.
CP1EN20DT1D
CP1E-N20DT1-D
| Brand: | Omron |
| Family: | Sysmac |
| Series: | CP1E |
| Product Type: | Compact PLC CPU |
| Manufacturer Part No.: | CP1E-N20DT1-D |
| Supply Voltage DC: | 20.4V - 26.4V |
| Voltage Type: | DC |
| Max. No. of Time Switches: | 255 |
| Max. No.of Addressable Digital I/O Points: | 20 |
| Format: | Compact |
| Processing Time (1K, Binary Operations): | 1.1ms |
| No. of RS-232 Ports: | 1 |
| No. of USB Ports: | 1 |
| No. of Digital Inputs: | 12 |
| No. of Digital Outputs: | 8 |
| Supports Protocol for Other Bus Systems: | Yes |
| Type of Memory: | FLASH |
| Memory Size: | 52kByte |
| Rail Mounting Possible: | Yes |
| Wall Mounting Possible: | Yes |
| Category according to EN 954-1: | B |
| Performance Level acc. to EN ISO 13849-1: | Level a |
| Width: | 86mm |
| Height: | 90mm |
| Depth: | 85mm |
| GTIN: | 04547648730730 |
