Description

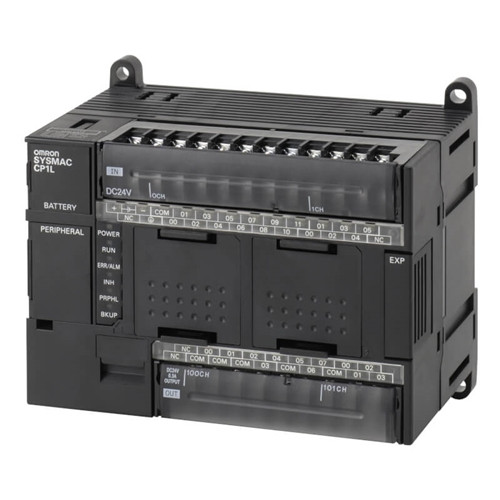

CP1LM30DT1D OMRON 24VDC SUPPLYCP1L PLC CPU, 24 VDC supply, 18x 24 VDC inputs, 12x PNP outputs 0.3A, 10KSteps p rogram, 32KWord data memory
CP1LM30DT1D
CP1L-M30DT1-D
| Brand: | Omron |
| Family: | Sysmac |
| Series: | CP1L |
| Product Type: | Compact PLC CPU |
| Manufacturer Part No.: | CP1L-M30DT1-D |
| Supply Voltage DC: | 20.4V - 26.4V |
| Voltage Type: | DC |
| Max. No. of Time Switches: | 4096 |
| Max. No. of Addressable Analogue I/O Points: | 13 |
| Max. No.of Addressable Digital I/O Points: | 150 |
| Format: | Compact |
| Processing Time (1K, Binary Operations): | 0.55ms |
| No. of USB Ports: | 1 |
| No. of Other Interfaces: | 1 |
| No. of Analogue Inputs: | 1 |
| No. of Digital Inputs: | 18 |
| No. of Digital Outputs: | 12 |
| Supports Protocol for Other Bus Systems: | Yes |
| Type of Memory: | FLASH |
| Memory Size: | 370kByte |
| Rail Mounting Possible: | Yes |
| Wall Mounting Possible: | Yes |
| Category according to EN 954-1: | B |
| Performance Level acc. to EN ISO 13849-1: | Level a |
| Width: | 130mm |
| Height: | 90mm |
| Depth: | 85mm |
| GTIN: | 04548583764903 |
