Description

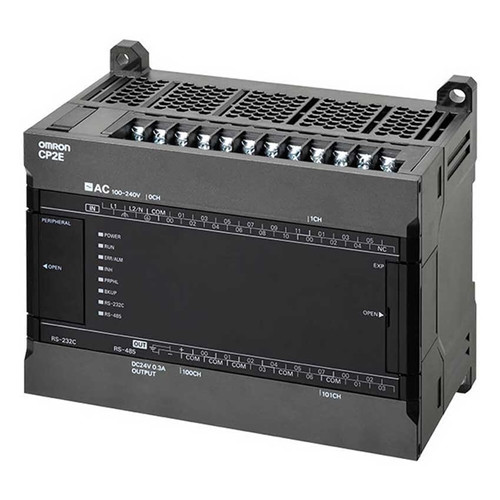

CP2ES30DT1D OMRON CP2E compact PLC Standard Type 18 DI, 12DO,PNP output, 24 VDC, 8 k Step Program memory
CP2ES30DT1D
CP2E-S30DT1-D
| Brand: | Omron |
| Product Type: | Compact PLC |
| Manufacturer Part No.: | CP2E-S30DT1-D |
| Description: | CP2E series compact PLC - Standard Type; 18 DI, 12DO; PNP output; Power supply 24 VDC; 8 kStep Program memory |
| Supply voltage type: | DC |
| Input type: | PNP/NPN |
| Number of digital inputs: | 18 |
| Output type: | PNP |
| Number of digital outputs: | 12 |
| Program capacity: | 16 K steps |
| Data memory capacity: | 8 K words |
| Logic execution time: | 0.23 µs |
| Communication port(s): | Serial RS-232C, Serial RS-485, USB |
| Number of Ethernet ports: | 0 |
| Number of USB ports: | 1 |
| Number of RS-232 ports: | 1 |
| Number of RS-485 ports: | 1 |
| Communication option(s): | CompoBus/S Slave |
| Number of encoder input channels: | 6 |
| Max. encoder input frequency: | 100 kHz |
| Max. number of PTP axes: | 2 |
| Max. pulse output frequency: | 100 kHz |
| Function Block programming: | Yes |
| Battery-free memory backup: | Yes |
| Real-time clock: | Yes |
| Analogue option boards: | No |
| Max. number of analogue I/O channels: | 24 |
| Max. number of local I/O points: | 150 |
| Max. number of expansion units: | 3 |
| Built-in auxiliary 24 VDC output: | 0 mA |
| Operating temperature range: | -20-60 °C |
| Product Height (unpacked): | 90 mm |
| Product Width (unpacked): | 130 mm |
| Product Depth (unpacked): | 80 mm |
| Product Weight (unpacked): | 0 g |
