Description

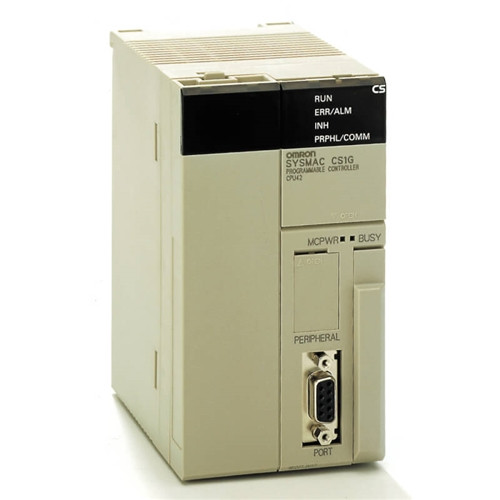

CS1GCPU42H OMRON MAIN CPU 452.98KBYTE
CS1GCPU42H
CS1G-CPU42H
| Brand: | Omron |
| Family: | Sysmac |
| Series: | CS1G |
| Product Type: | Modular PLC CPU |
| Manufacturer Part No.: | CS1G-CPU42H |
| Supply Voltage AC 50 Hz: | 85V - 264V |
| Supply Voltage AC 60 Hz: | 85V - 264V |
| Supply Voltage DC: | 24V |
| Voltage Type: | AC/DC |
| Max. No. of Time Switches: | 4090 |
| Max. No. of Addressable Analogue I/O Points: | 256 |
| Max. No.of Addressable Digital I/O Points: | 960 |
| Format: | Modular |
| Processing Time (1K, Binary Operations): | 0.04ms |
| No. of RS-232 Ports: | 1 |
| No. of Other Interfaces: | 1 |
| Type of Memory: | FLASH |
| Memory Size: | 40kByte |
| Rail Mounting Possible: | Yes |
| Rack Assembly Possible: | Yes |
| Category according to EN 954-1: | B |
| Performance Level acc. to EN ISO 13849-1: | Level a |
| Width: | 71mm |
| Height: | 130mm |
| Depth: | 100mm |
| GTIN: | 04536854781612 |
