Description

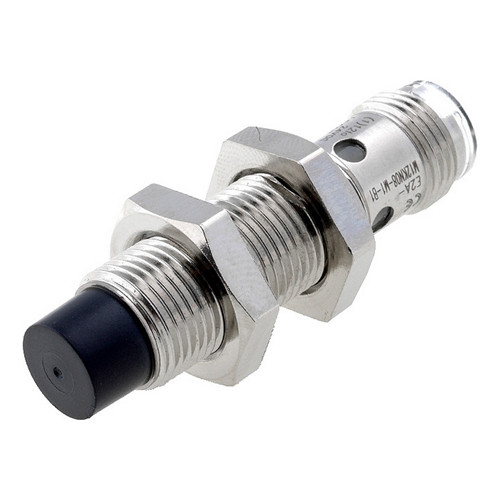

E2AM12KN08M1B3 OMRON Proximity sensor, inductive, nickel-brass,short body, M12, unshielded, 8mm, DC, 4-wire, PNP-Antivalent (NO or NC), M12 plug-in
E2AM12KN08M1B3
| Brand: | Omron |
| Product Type: | Inductive Proximity Switch |
| Manf. Part No.: | E2A-M12KN08-M1-B3 |
| Width Sensor: | 12mm |
| Height of Sensor: | 12mm |
| Length of Sensor: | 48mm |
| Sensor Diameter: | 12mm |
| Mounting Style: | Not flat |
| Switching Distance: | 8mm |
| Suitable for Safety Functions: | No |
| Switch Function: | Antivalent (NO and NC) |
| Type of Switching Output: | PNP |
| Electrical Connection: | Connector M12 |
| No. of Semiconductor Outputs with Signalling Function: | 2 |
| No. of Contact Energized Outputs with Signalling Function: | 0 |
| No. of Protected Semiconductor Outputs: | 0 |
| No. of Protected Contact Energized Outputs: | 0 |
| Actuation Type: | Metallic Target |
| Type of Interface: | None |
| Type of Interface for Safety Communication: | None |
| Housing Construction: | Cylinder, screw-thread |
| Housing Coating: | Nickel-plated |
| Cascadable: | Yes |
| Category According to EN 954-1: | B |
| SIL According to IEC 61508: | None |
| Performance Level acc. to EN ISO 13849-1: | None |
| Max. Output Current at Protected Output: | 200mA |
| Supply Voltage: | 12V - 24V |
| Rated Control Voltage Us at AC 50HZ: | |
| Rated Control Voltage Us at AC 60HZ: | |
| Rated Control Voltage Us at DC: | 12V - 24V |
| Voltage Type: | DC |
| Switching Frequency: | 800Hz |
| Monitoring Function for ownstream Switching Devices: | No |
| Housing Material: | Metal |
| Compression Resistant: | No |
| Explosion Safety Category for Gas: | None |
| Explosion Safety Category for Dust: | None |
| GTIN: | 04548583724266 |
