Description

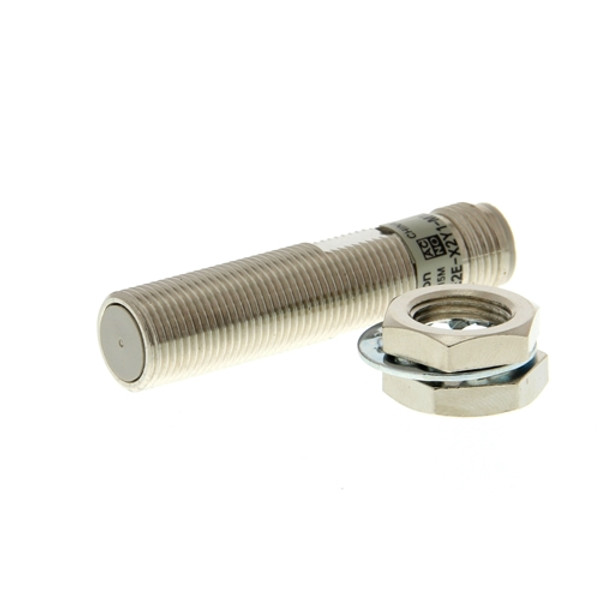

E2EX2Y1M1 OMRON PROXIMITY SENSOR INDUCTIVE M12 SHIELDED 2MMAC 2-WIRE N/O M12 CONNECTOR
E2EX2Y1M1
E2E-X2Y1-M1
| Brand: | Omron |
| Product Type: | Inductive Proximity Switch |
| Manf. Part No.: | E2E-X2Y1-M1 |
| Width Sensor: | 12mm |
| Height of Sensor: | 12mm |
| Length of Sensor: | 30mm |
| Sensor Diameter: | 12mm |
| Mounting Style: | Other |
| Switching Distance: | 2mm |
| Suitable for Safety Functions: | No |
| Switch Function: | Normally Open |
| Type of Switching Output: | Two-wire |
| Electrical Connection: | Connector M12 |
| No. of Semiconductor Outputs with Signalling Function: | 1 |
| No. of Contact Energized Outputs with Signalling Function: | 0 |
| No. of Protected Semiconductor Outputs: | 0 |
| No. of Protected Contact Energized Outputs: | 0 |
| Actuation Type: | Metallic Target |
| Type of Interface: | None |
| Type of Interface for Safety Communication: | None |
| Housing Construction: | Cylinder, screw-thread |
| Housing Coating: | Other |
| Cascadable: | Yes |
| Category According to EN 954-1: | B |
| SIL According to IEC 61508: | None |
| Performance Level acc. to EN ISO 13849-1: | Level a |
| Max. Output Current at Protected Output: | 100mA |
| Supply Voltage: | 24V - 240V |
| Rated Control Voltage Us at AC 50HZ: | 24V - 240V |
| Rated Control Voltage Us at AC 60HZ: | 24V - 240V |
| Voltage Type: | AC |
| Switching Frequency: | 25Hz |
| Monitoring Function for ownstream Switching Devices: | No |
| Housing Material: | Metal |
| Compression Resistant: | No |
| Explosion Safety Category for Gas: | None |
| Explosion Safety Category for Dust: | None |
| GTIN: | 04547648405256 |
