Description

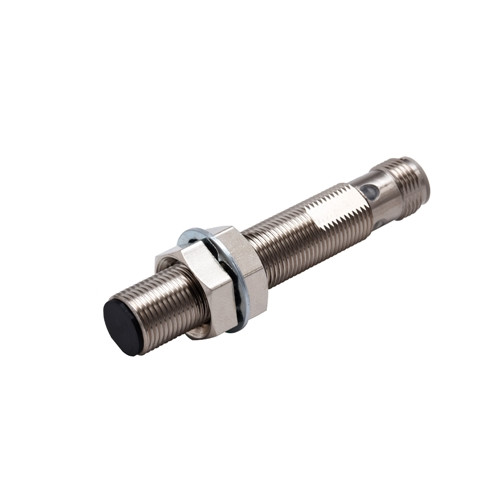

E2EX9B1TL12M1 OMRON Proximity sensor, inductive, nickel-brass,long body, M12, shielded, 9 mm, DC, 3-wi re, PNP NO, IO-Link COM3, M12 connector
E2EX9B1TL12M1
| Brand: | Omron |
| Product Type: | Inductive Proximity Switch |
| Manf. Part No.: | E2E-X9B1TL12-M1 |
| Description: | Proximity sensor, inductive, nickel-brass, long body, M12, shielded, 9 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector |
| Sensor Diameter: | 12mm |
| Switching Distance: | 9mm |
| Suitable for Safety Functions: | No |
| Switch Function: | Normally Open |
| Type of Switching Output: | PNP |
| Electrical Connection: | Connector M12 |
| No. of Semiconductor Outputs with Signalling Function: | 1 |
| No. of Contact Energized Outputs with Signalling Function: | 0 |
| No. of Protected Semiconductor Outputs: | 0 |
| No. of Protected Contact Energized Outputs: | 0 |
| Actuation Type: | Metallic Target |
| Type of Interface: | IO-Link |
| Type of Interface for Safety Communication: | None |
| Housing Construction: | Cylinder, screw-thread |
| Housing Coating: | Nickel-plated |
| Cascadable: | No |
| Category According to EN 954-1: | 1 |
| SIL According to IEC 61508: | None |
| Performance Level acc. to EN ISO 13849-1: | None |
| Max. Output Current at Protected Output: | 50mA |
| Supply Voltage: | 10V - 30V |
| Rated Control Voltage Us at AC 50HZ: | |
| Rated Control Voltage Us at AC 60HZ: | |
| Rated Control Voltage Us at DC: | 10V - 30V |
| Voltage Type: | DC |
| Switching Frequency: | 700Hz |
| Monitoring Function for ownstream Switching Devices: | No |
| Housing Material: | Metal |
| Compression Resistant: | No |
| Explosion Safety Category for Gas: | None |
| Explosion Safety Category for Dust: | None |
| GTIN: | 4549734470605 |
