Description

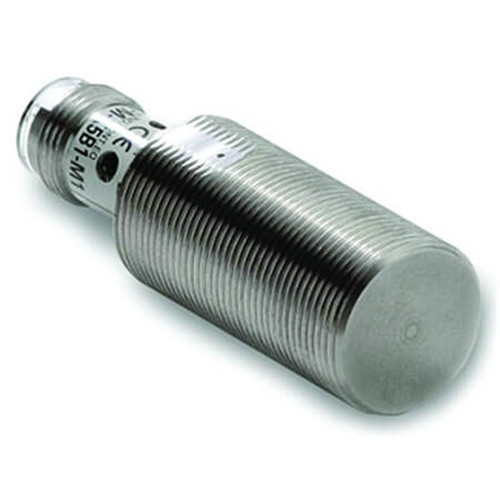

E2FMX10B1M1 OMRON 30MM PROXY SWITCHinductive, stainless steel face & body, long body, M30, shielded, 10mm, DC, 3-wi re, PNP-NO, M12 plug-in
E2FMX10B1M1
E2FM-X10B1-M1
| Brand: | Omron |
| Product Type: | Inductive Proximity Switch |
| Manf. Part No.: | E2FM-X10B1-M1 |
| Length of Sensor: | 63.5mm |
| Sensor Diameter: | 30mm |
| Mounting Style: | Concise |
| Switching Distance: | 10mm |
| Suitable for Safety Functions: | No |
| Switch Function: | Normally Open |
| Type of Switching Output: | PNP |
| Electrical Connection: | Connector M12 |
| No. of Semiconductor Outputs with Signalling Function: | 1 |
| No. of Contact Energized Outputs with Signalling Function: | 0 |
| No. of Protected Semiconductor Outputs: | 0 |
| No. of Protected Contact Energized Outputs: | 0 |
| Actuation Type: | Metallic Target |
| Type of Interface: | None |
| Type of Interface for Safety Communication: | None |
| Housing Construction: | Cylinder, screw-thread |
| Housing Coating: | Other |
| Cascadable: | Yes |
| Category According to EN 954-1: | B |
| SIL According to IEC 61508: | None |
| Performance Level acc. to EN ISO 13849-1: | Level a |
| Max. Output Current at Protected Output: | 100mA |
| Supply Voltage: | 10V - 30V |
| Rated Control Voltage Us at AC 50HZ: | |
| Rated Control Voltage Us at AC 60HZ: | |
| Rated Control Voltage Us at DC: | 12V - 24V |
| Voltage Type: | DC |
| Switching Frequency: | 400Hz |
| Monitoring Function for ownstream Switching Devices: | No |
| Housing Material: | Plastic |
| Compression Resistant: | No |
| Explosion Safety Category for Gas: | None |
| Explosion Safety Category for Dust: | None |
| GTIN: | 04547648228428 |
