Description

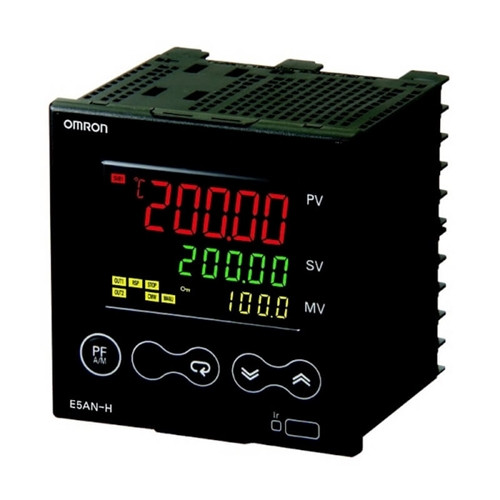

E5ANHAA2HBM500 OMRON TEMP CONTROLLER
E5ANHAA2HBM500
E5AN-HAA2HBM-500 100-240 VAC
| Series : | E5A |
| Supply Voltage : | 100 to 240 VAC |
| Thermocouple Input Type: | K, L (with sensor break detection) |
| RTD Input Type: | Pt100, THE |
| Control Mode: | Standard or heating/cooling control |
| Setting Method : | Analogue setting |
| Output : | 2 Control Output Units |
| Life Expectancy : | Electrical: 100,000 operations min |
| Setting Accuracy : | ± 2% FS max |
| Hysteresis: | Approx 0.5% FS (fixed) |
| Proportional Band: | 3% FS (fixed) |
| Reset Range: | 5± 1% FS min |
| Control Period : | 20s |
| Ip Rating Front Panel: | IP40 |
| Ip Rating Terminals : | IP00 |
| Ambient Temperature : | -10 to 55°c |
| Height (mm): | 96 |
| Width (mm): | 96 |
| Depth (mm): | 79.2 |
| Weight (kg): | 0.5 |
