Description

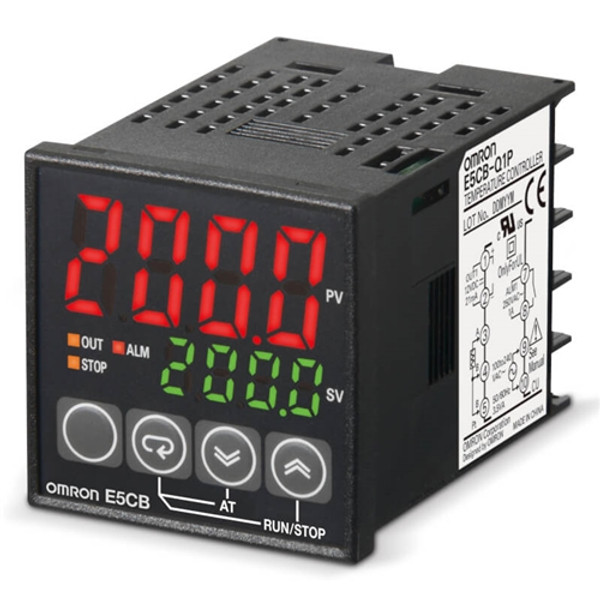

E5CBR1TCDACDC24 OMRON TEMPERATURE CONTROLLER1/16DIN (48 x 48mm), relay output, ON/OF F or PID control, Themocouple input, 24 VAC/DC
E5CBR1TCDACDC24
E5CB-R1TCD 24VAC/DC
| Series : | E5C |
| Power Supply Voltage : | 24 VAC/VDC |
| Operating Voltage Range: | 85% to 110% of rated supply voltage |
| Power Consumption: | Approx. 3.5 VA (24 VAC) Approx. 2.5 W (24 VDC) |
| Input Type: | Thermocouple |
| Control Method: | ON/OFF |
| Control Output: | Relay output |
| Setting Method: | Digital setting using front panel keys |
| Indication Method: | 7-segment digital display and individual indicators. Character height: 16.2 mm (PV) |
| Ambient Operating Temperature: | -10 to 55°C |
| Ambient Operating Humidity: | 25% to 85% |
| Storage Temperature: | -25 to 65°C |
| Height (mm): | 48 |
| Width (mm): | 48 |
| Depth (mm): | 65 |
| Weight (kg): | 0.133 |
