Description

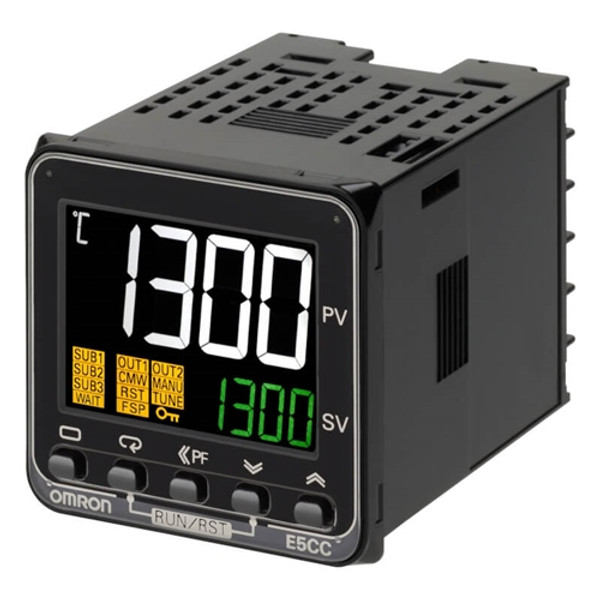

E5CCQX3D5M000 OMRON TEMPERATURE CONTROLLER 24V AC/DC
E5CCQX3D5M000
E5CC-QX3D5M-000
| Series : | E5C |
| Power Supply Voltage : | 24 VAC/DC |
| Operating Voltage Range: | 85% to 110% of rated supply voltage |
| Power Consumption: | 3.1 VA max. at 24 VAC or 1.6 W max. at 24 VDC |
| Input Type: | Universal |
| Control Method: | ON/OFF |
| Control Output: | Voltage output |
| Setting Method: | Digital setting using front panel keys |
| Indication Method: | 11-segment digital display and individual indicators. Character height: PV: 15.2 mm, SV: 7.1 mm |
| Ambient Operating Temperature: | -10 to 55°C |
| Ambient Operating Humidity: | 25% to 85% |
| Storage Temperature: | -25 to 65°C |
| Height (mm): | 48 |
| Width (mm): | 48 |
| Depth (mm): | 73.1 |
| Weight (kg): | 0.143 |
