Description

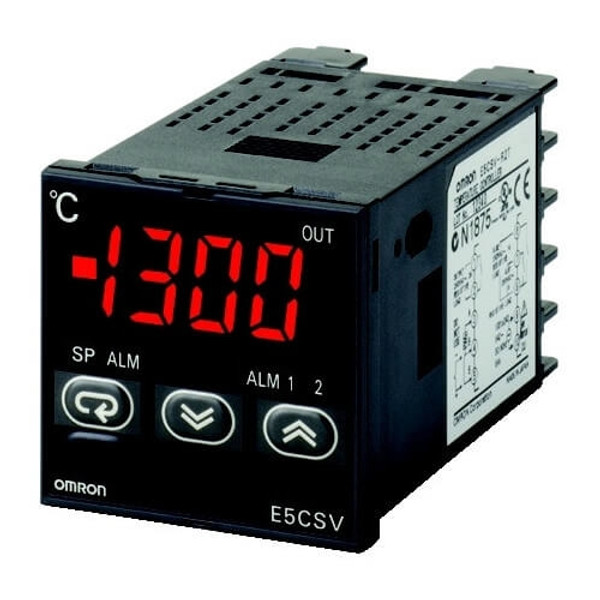

E5CSVR1TD500 OMRON 24VAC/DC TEMPERATURE CONTROLLER(E5CSVR1TD500ACDC24V)
E5CSVR1TD500
E5CSV-R1TD-500 24VAC/DC
| Series : | E5C |
| Terminal Cover: | Yes |
| Power Supply Voltage : | 24 VAC/VDC |
| Operating Voltage Range: | 85% to 110% of rated supply voltage |
| Power Consumption: | 24 VAC: 3 VA, 24 VDC: 2 W |
| Input Type: | Thermocouple/platinum resistance thermometer |
| Control Method: | ON/OFF control or 2-PID control (with auto-tuning) |
| Control Output: | Relay output |
| Alarm Outputs: | 1 |
| Setting Method: | Digital setting using front panel keys |
| Indication Method: | 7-segment digital display |
| Ambient Operating Temperature: | -10 to 55°C |
| Ambient Operating Humidity: | 25% to 85% |
| Storage Temperature: | -25 to 65°C |
| Height (mm): | 48 |
| Width (mm): | 48 |
| Depth (mm): | 84 |
| Weight (kg): | 0.186 |
