Description

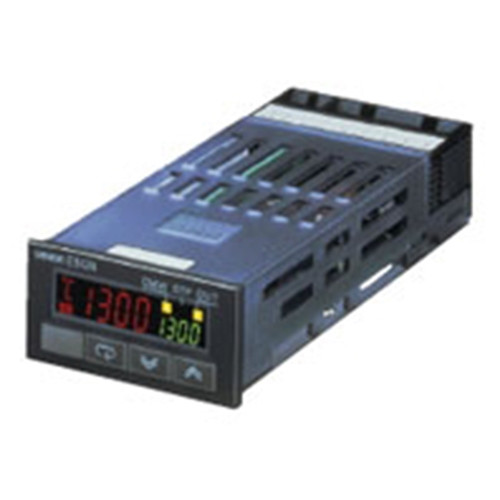

E5GNR1TDC/24 OMRON TEMPERATURE CONTROLLER 24V ACDC1/32 DIN(48X24MM) RELAY OUTPUT, THERM/ P T100 INPUT, SLC
E5GNR1TDC-24
| Series : | E5G |
| Power Supply Voltage : | 24 VAC/VDC |
| Operating Voltage Range: | 85% to 110% of rated supply voltage |
| Power Consumption: | 24 VAC/VDC: 3 VA/2 W (max.) |
| Input Type: | Universal |
| Control Method: | ON/OFF control or 2-PID control (with auto-tuning) |
| Control Output: | Relay output |
| Auxiliary Output Number of Outputs: | 1 |
| Setting Method: | Digital setting using front panel keys |
| Indication Method: | 11-segment digital display and individual indicators (7-segments displays also possible) |
| Ambient Operating Temperature: | -10 to 55°C |
| Ambient Operating Humidity: | 25% to 85% |
| Storage Temperature: | -25 to 65°C |
| Height (mm): | 35 |
| Width (mm): | 48 |
| Depth (mm): | 99 |
| Weight (kg): | 0.151 |
