Description

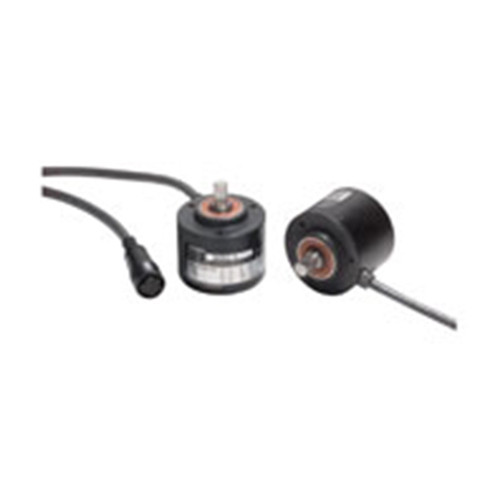

E6C3AG5B360PR2 OMRON ENCODER ABSOLUTE 360PPR 9BIT 12-24VDC GRAY CODE OUTPUT 2M CABLE (FULL PART REF: E6C3AG5B360PR2M)
E6C3AG5B360PR2
| Series : | E6C |
| Encoding Method: | Absolute |
| Resolution P/R: | 360 |
| Control Output (Output type): | PNP open collector output |
| Max Force Radial: | 80 N |
| Max Force Thrust: | 50 N |
| IP Rating : | IP65 |
| Power Supply Voltage: | 12 VDC -10% to 24 VDC +15% (ripple (p-p): 5% Max.) |
| Max Rotation Frequency r/min: | 5000 r/min |
| Height (mm): | 50 |
| Width (mm): | 50 |
| Depth (mm): | 58 |
| Weight (kg): | 0.322 |
