Description

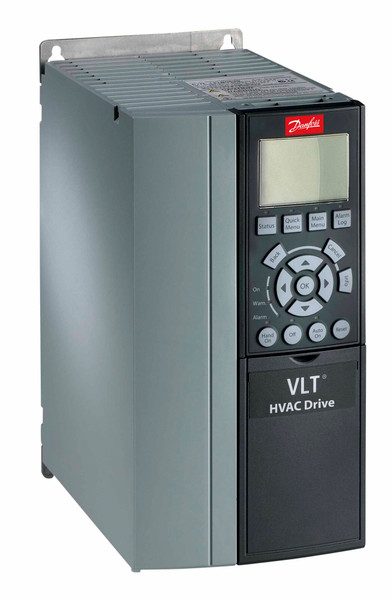

Frequency Converter
FC-102P37KT6P55HXTGC1XXSXXXXALB2CXXXXDX
VLT® HVAC Drive FC-102
(P37K) 37 KW / 50 HP,
Three phase, 525 - 600 VAC,IP55 / Type12 Backplate
No RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
Frame: C1
PROFINET MCA 120, MCB-112 PTC Therm. Card
No C1 option, No D option
ATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]
Other options according to Model Code
Model code:
FC-102P37KT6P55HXTGC1XXSXXXXALB2CXXXXDX
Danfoss VLT® HVAC Drive FC-102 Drive is dedicated toventilation, heating, and refrigeration applications. With a wide rangeof powerful standard and optional features, the Drive provides th...
| Gross weight | 42.6 Kilogram | ||
| Net weight | 39.6 Kilogram | ||
| EAN | 5714853439164 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P37K | (P37K) 37 KW / 50 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 6 | 525 - 600 VAC | |
| Enclosure | P55 | IP55 / Type12 Backplate | |
| RFI Filter | HX | No RFI Filter | |
| Brake - Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 1 | Mains Disconnect | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AL | PROFINET MCA 120 | |
| B Option | B2 | MCB-112 PTC Therm. Card | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | C1 | C1 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | 1XXSXXXXALB2CXXXXDX | ||
| Power 110% (NO) [KW] | 37 | 37 | |
| Height [mm] | 685,0 | 685,0 | |
| Width w/ no C options [mm] | 308,0 | 308,0 | |
| Depth [mm] | 311,0 | 311,0 | |
| Depth with Option A/B [mm] | 311,0 | 311,0 | |
| kVA | 51.8 | 51.8 | |
| Power Loss NO [W] | 750 | 750 | |
| Power Loss NO [W] | 750 | 750 | |
| Continuous Current (NO) [A] | 54 | 54 | |
| Intermittent Current (NO) [A] | 59.4 | 59.4 | |
| Continuous Current (NO) [A] | 52 | 52 | |
| Intermittent Current (NO) [A] | 57.2 | 57.2 | |
| ATEX Marking 1 | ATEX: II (2) G [Ex eb Gb] [Ex | ATEX: II (2) G [Ex eb Gb] [Ex | |
| ATEX Marking 2 | db Gb] / II (2) D [Ex tb Db] | db Gb] / II (2) D [Ex tb Db] | |
| Calculated Gross Weight [kg] | 42.6 | ||
| Calculated Net Weight [kg] | 39.6 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P37KT6P55HXTGC | ||
| Modelcode02 | 1XXSXXXXALB2CXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
