Description

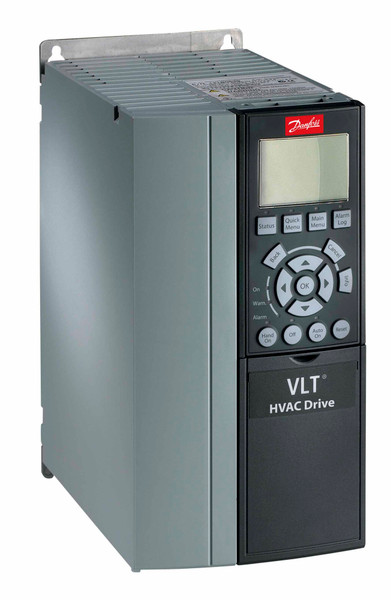

Frequency Converter
FC-102P3K0T4Z55H1TGCXOXSXXXXA0B2CXXXXDX
VLT® HVAC Drive FC-102
(P3K0) 3.0 KW / 4.0 HP,
Three phase, 380 - 480 VAC,IP55 / Type 12 A4 Frame
(H1) RFI Class A1/B (C1)
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: A4
PROFIBUS DP MCA 101, MCB-112 PTC Therm. Card
No C1 option, No D option
ATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]
Other options according to Model Code
Model code:
FC-102P3K0T4Z55H1TGCXOXSXXXXA0B2CXXXXDX
Danfoss VLT® HVAC Drive FC-102 Drive is dedicated toventilation, heating, and refrigeration applications...
| Gross weight | 8.926 Kilogram | ||
| Net weight | 8.19 Kilogram | ||
| EAN | 5715253214382 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P3K0 | (P3K0) 3.0 KW / 4.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | Z55 | IP55 / Type 12 A4 Frame | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | O | Metric thread cable entry | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | B2 | MCB-112 PTC Therm. Card | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A4 | A4 | |
| Product Catalog | GLBL | Global (Standard) | |
| Typecode Part 2 | XOXSXXXXA0B2CXXXXDX | ||
| Power 110% (NO) [KW] | 3 | 3 | |
| Height [mm] | 391,0 | 391,0 | |
| Width w/ no C options [mm] | 200,0 | 200,0 | |
| Depth [mm] | 177,0 | 177,0 | |
| Depth with Option A/B [mm] | 177,0 | 177,0 | |
| kVA | 4.99 | 4.99 | |
| Power Loss NO [W] | 116 | 116 | |
| Power Loss NO [W] | 116 | 116 | |
| Continuous Current (NO) [A] | 7.2 | 7.2 | |
| Intermittent Current (NO) [A] | 7.92 | 7.92 | |
| Continuous Current (NO) [A] | 6.3 | 6.3 | |
| Intermittent Current (NO) [A] | 6.93 | 6.93 | |
| ATEX Marking 1 | ATEX: II (2) G [Ex eb Gb] [Ex | ATEX: II (2) G [Ex eb Gb] [Ex | |
| ATEX Marking 2 | db Gb] / II (2) D [Ex tb Db] | db Gb] / II (2) D [Ex tb Db] | |
| Calculated Gross Weight [kg] | 8.926 | ||
| Calculated Net Weight [kg] | 8.19 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | B901 | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P3K0T4Z55H1TGC | ||
| Modelcode02 | XOXSXXXXA0B2CXXXXDX |
