Description

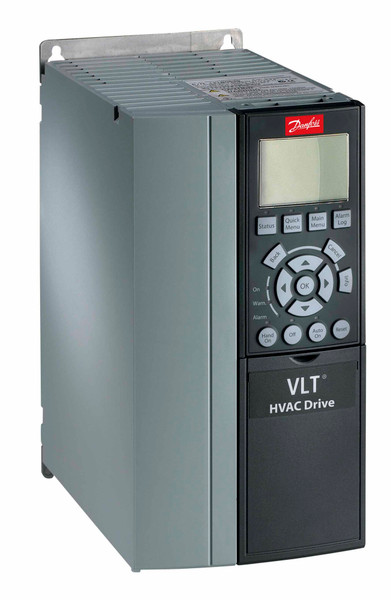

Frequency Converter
FC-102P4K0T4Z66H1XXC1XXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC-102
(P4K0) 4.0 KW / 5.0 HP,
Three phase, 380 - 480 VAC,IP66 / Type 4X A4 Frame
(H1) RFI Class A1/B (C1)
No brake chopper
No Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
Frame: A4
No A Option, No B Option
No C1 option, No D option
Other options according to Model Code
Model code:
FC-102P4K0T4Z66H1XXC1XXSXXXXAXBXCXXXXDX
Danfoss VLT® HVAC Drive FC-102 Drive is dedicated toventilation, heating, and refrigeration applications. With a wide rangeof powerful standard and optional features, the Drive provides th...
| Gross weight | 8.906 Kilogram | ||
| Net weight | 8.17 Kilogram | ||
| EAN | 5715253105826 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P4K0 | (P4K0) 4.0 KW / 5.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | Z66 | IP66 / Type 4X A4 Frame | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 1 | Mains Disconnect | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A4 | A4 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 2 | 1XXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 4 | 4 | |
| Height [mm] | 391,0 | 391,0 | |
| Width w/ no C options [mm] | 200,0 | 200,0 | |
| Depth [mm] | 177,0 | 177,0 | |
| Depth with Option A/B [mm] | 177,0 | 177,0 | |
| kVA | 6.93 | 6.93 | |
| Power Loss NO [W] | 124 | 124 | |
| Power Loss NO [W] | 124 | 124 | |
| Continuous Current (NO) [A] | 10 | 10 | |
| Intermittent Current (NO) [A] | 11 | 11 | |
| Continuous Current (NO) [A] | 8.2 | 8.2 | |
| Intermittent Current (NO) [A] | 9.02 | 9.02 | |
| Calculated Gross Weight [kg] | 8.906 | ||
| Calculated Net Weight [kg] | 8.17 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | B901 | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P4K0T4Z66H1XXC | ||
| Modelcode02 | 1XXSXXXXAXBXCXXXXDX |
